Description

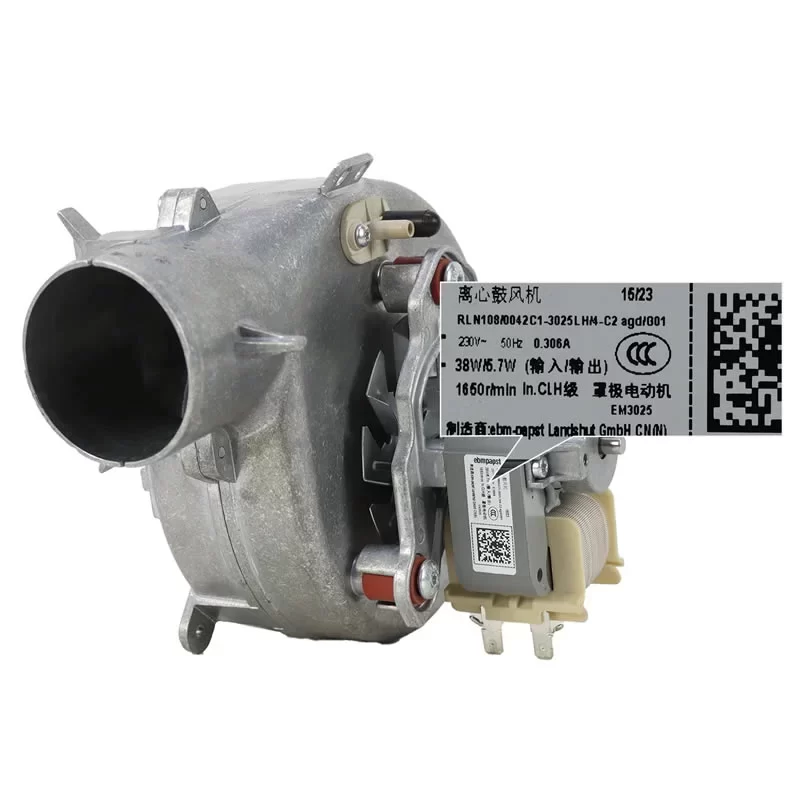

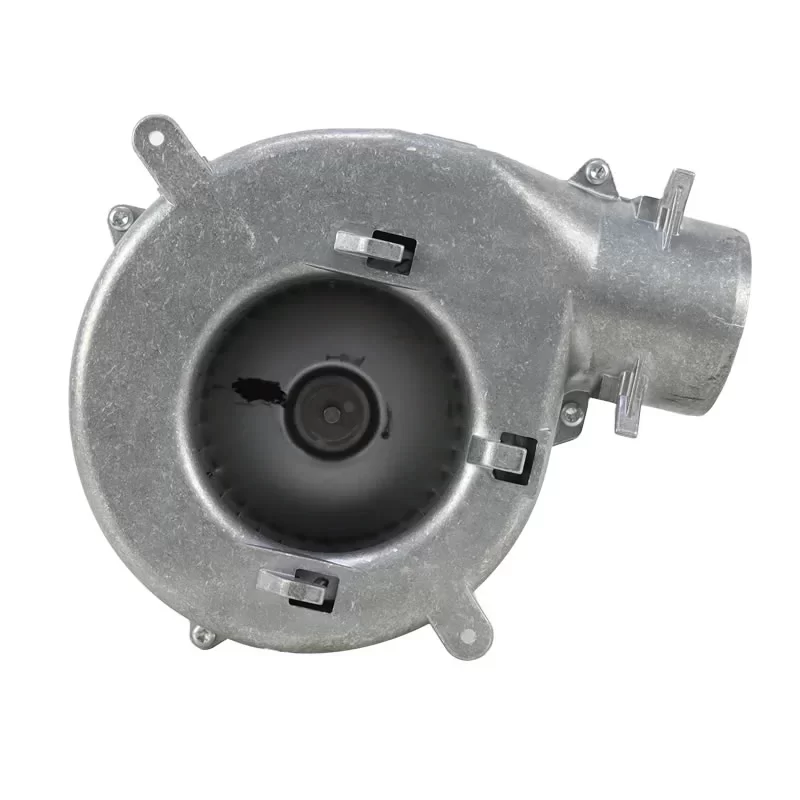

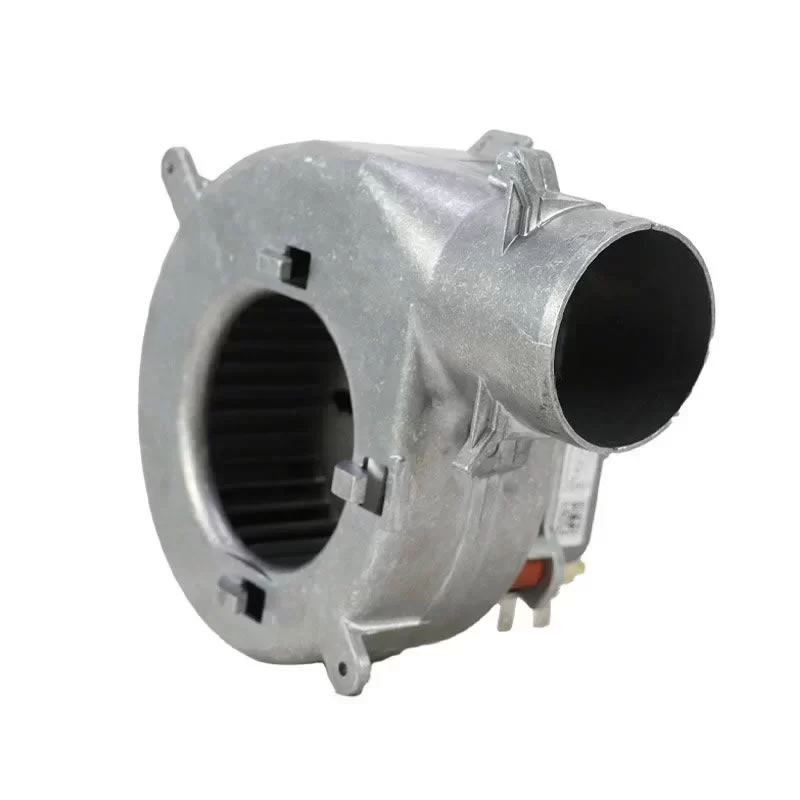

The ebmpapst RLN108/0042C1-3025LH/4-C2 agd/G01 is a 230 VAC AC centrifugal blower with dimensions of 108 x 108 x 42 mm. Featuring dual ball bearings, a die-cast aluminum housing, and a forward-curved sheet steel impeller, this industrial cooling blower delivers a Working Air Flow of 20.60 CFM (35.0 m³/h / 0.58 m³/min) and a Static Pressure Increase of 10.20 mmH₂O (100.0 Pa / 0.40 inH₂O) at a rated speed of 1,650 RPM. Operating on a nominal voltage of 230 VAC (50 Hz) within an operating voltage range of 200 – 240 VAC, it features a Max. Current Draw of 0.306 A with a Max. Power Consumption of 38 W (5.7 W output) and includes lead wire connections. Built for continuous operation, it has a Weight of 0.42 kg, operates at 48.0 dBA within a temperature range of -20 to +60 °C, offers a life expectancy of 40,000 hours, and holds safety certifications including CE, VDE, and RoHS.
RLN108/0042C1-3025LH/4-C2 agd/G01 Fan Parameters
Manufacturer: ebmpapst
Model Number: RLN108/0042C1-3025LH/4-C2 agd/G01
Type: AC Centrifugal Blower
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 240 VAC (50 Hz)
Dimensions: 108 x 108 x 42 mm
Impeller Size: 108 mm
Weight: 0.42 kg
Housing Material: Die-Cast Aluminum / Galvanized Sheet Steel
Impeller Material: Sheet Steel
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires
Rated Speed: 1,650 RPM (min⁻¹)
Max. Current Draw: 0.306 A
Max. Power Consumption: 38 W (Input) / 5.7 W (Output)
Max. Air Flow: 20.60 CFM (35.0 m³/h / 0.58 m³/min)
Max. Static Pressure: 10.20 mmH₂O (100.0 Pa / 0.40 inH₂O)
Noise Level: 48.0 dBA
Operating Temperature: -20 – +60 °C
Storage Temperature: -40 – +80 °C
Life Expectancy: 40,000 hours
Safety Approvals: CE, VDE, RoHS
Application
The ebmpapst RLN108/0042C1-3025LH/4-C2 agd/G01 is deployed in pellet stoves, heating systems, electronic cabinet ventilation, medical equipment, commercial ovens, and compact industrial air handling units requiring high-pressure airflow.
