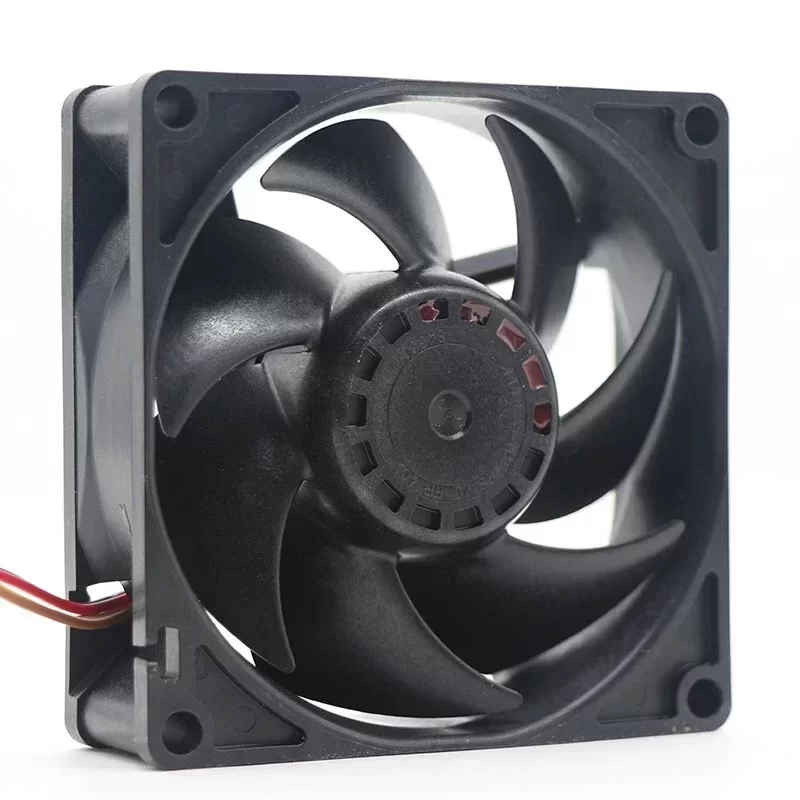

9GA0812P4J001 Sanyo Denki 12VDC 80x80x25mm DC Axial Fan

Description

The Sanyo Denki 9GA0812P4J001, a 12 VDC DC axial fan with dimensions of 80 x 80 x 25 mm, is driven by an energy-saving motor with integrated PWM speed control. Featuring dual ball bearings, a ribbed plastic frame, and a precision plastic impeller, this compact cooling fan delivers a Working Air Flow of 73.10 CFM (124.2 m³/h / 2.07 m³/min) and a Static Pressure Increase of 18.11 mmH₂O (177.6 Pa / 0.71 inH₂O) at a rated speed of 7,400 RPM. Operating on a nominal voltage of 12 VDC within a voltage range of 10.8 – 13.2 VDC, it features a Max. Current Draw of 0.60 A with a Max. Power Consumption of 7.2 W and includes 4-wire lead connections for PWM input and pulse sensor output. Built for continuous high-density thermal management, it has a Weight of 0.11 kg, operates at 48.0 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 60,000 hours, and is ideally suited for compact servers and automated industrial electronics.

9GA0812P4J001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GA0812P4J001
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Dimensions: 80 x 80 x 25 mm
Impeller Size: 76 mm
Weight: 0.11 kg
Frame Material: Plastic (Ribbed)
Impeller Material: Plastic
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (4 Wires)
Control Interface: PWM Speed Control & Pulse Sensor (Tachometer)
Rated Speed: 7,400 RPM (min⁻¹)
Max. Current Draw: 0.60 A
Max. Power Consumption: 7.2 W
Max. Air Flow: 73.10 CFM (124.2 m³/h / 2.07 m³/min)
Max. Static Pressure: 18.11 mmH₂O (177.6 Pa / 0.71 inH₂O)
Noise Level: 48.0 dBA
Operating Temperature: -20 – +70 °C
Life Expectancy: 60,000 hours (@ 60 °C)
Safety Approvals: UL, CSA, TUV, CE, RoHS

Application
The Sanyo Denki 9GA0812P4J001 is deployed in 1U/2U rackmount servers, network routers and switches, telecom power rectifiers, high-performance industrial workstations, frequency converters, and medical equipment requiring high-efficiency forced-air thermal management in compact enclosures.
