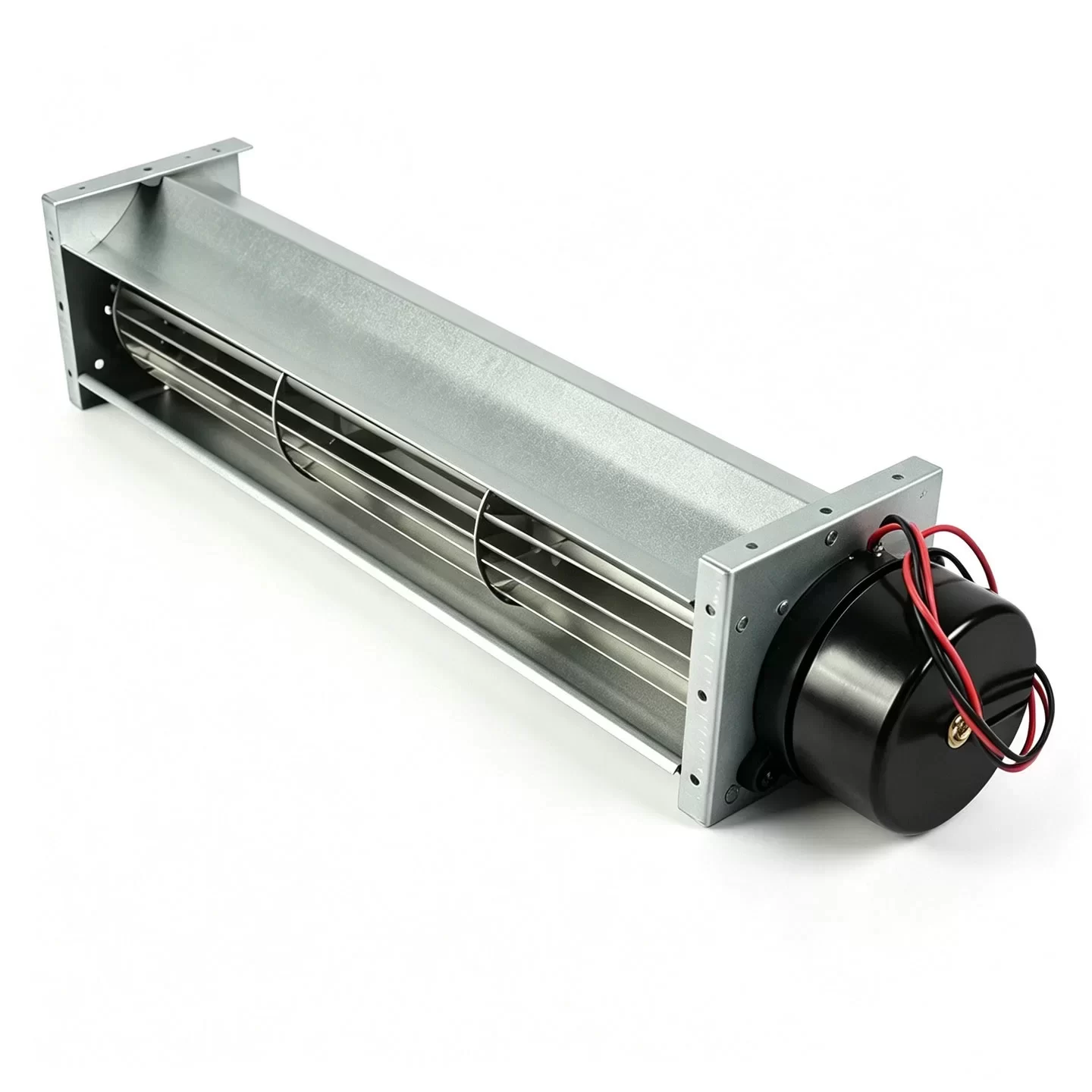

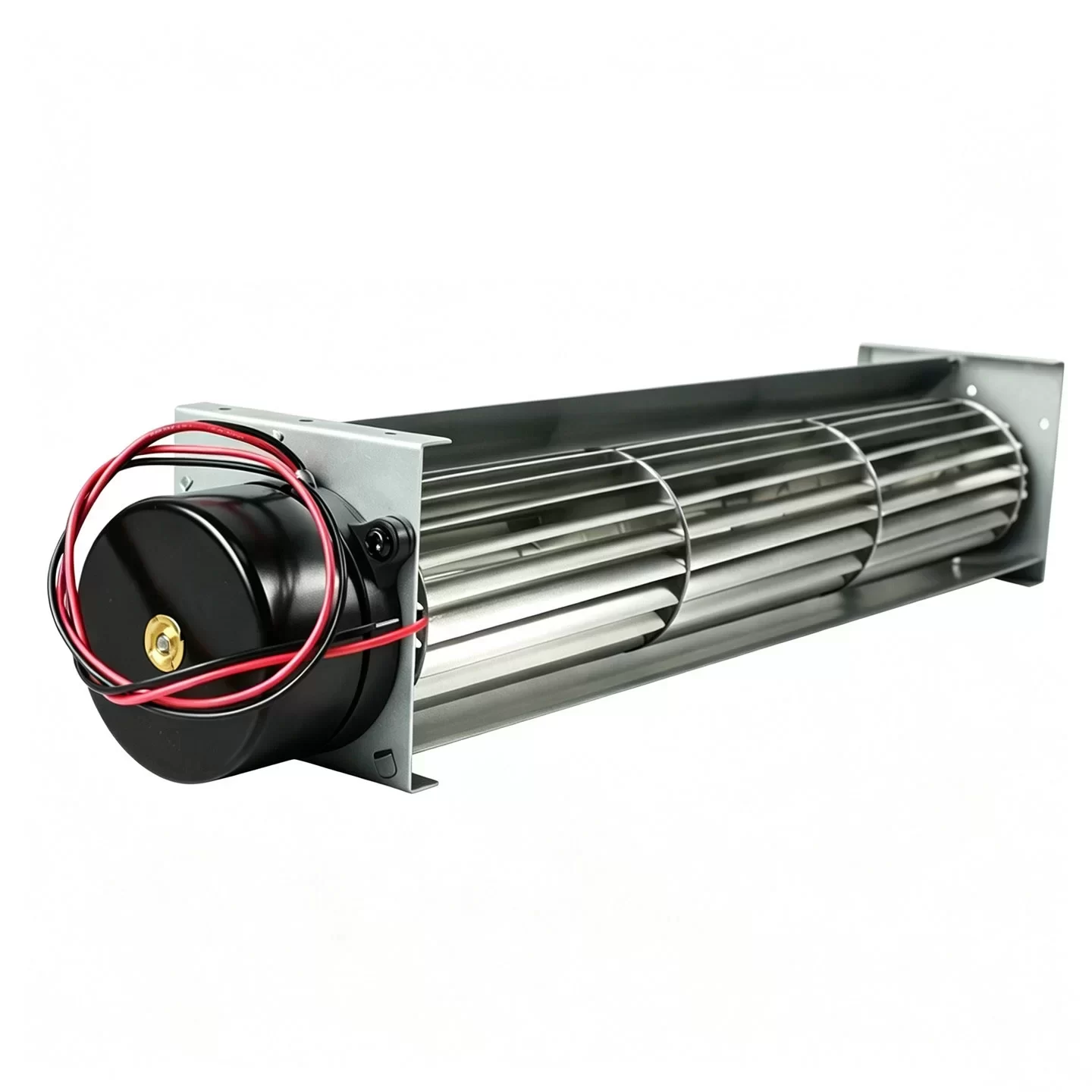

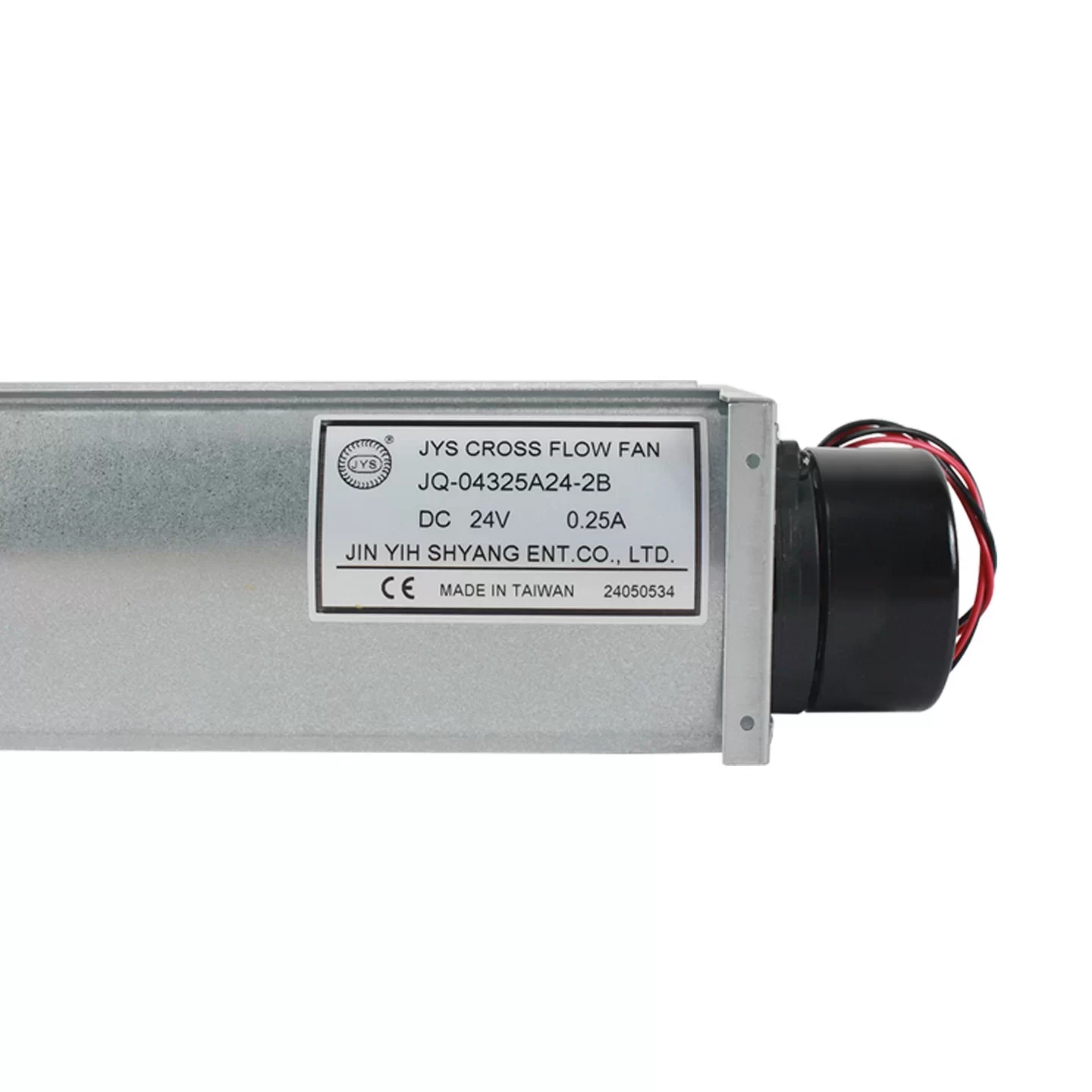

JQ-04325A24-2B JYS 24VDC 60x60x307mm DC Cross Flow Fan

Description

The Jin Yih Shyang (JYS) JQ-04325A24-2B is a high-performance 24 VDC DC Cross Flow Fan engineered to provide uniform linear airflow distribution and efficient thermal management for precision electronic systems. Constructed with a metallic paint housing, a 43 mm aluminum impeller, and reliable ball bearings, it has a total length of 307 mm (cooling length of 260 mm), overall dimensions of 60 x 60 x 307 mm, and a net weight of 340 g. Driven by a DC motor, it operates at a nominal voltage of DC 24 V with a rated current of 0.25 A and a power consumption of 6.00 W. Operating at a nominal speed of 2500 RPM, it delivers an air flow of 102 m³/h (60.03 CFM). Manufactured in Taiwan, it complies with CE agency approvals.

JQ-04325A24-2B Fan Parameters
Manufacturer: JYS (Jin Yih Shyang Ent. Co., Ltd.)
Model Number: JQ-04325A24-2B
Type: DC Cross Flow Fan
Fan Size: 60 x 60 x 307 mm
Total Length: 307 mm
Cooling Length: 260 mm
Net Weight: 340 g
Housing Material: Metallic Paint
Impeller Material: Aluminum Impeller
Bearing Type: Ball Bearing
Motor Type: DC Motor
Impeller Diameter: 43 mm
Nominal Voltage: DC 24 V
Rated Current: 0.25 A
Power Consumption: 6.00 W
Speed: 2500 RPM
Air Flow: 102 m³/h (60.03 CFM)
Country of Origin: Taiwan
Agency Approvals: CE

Application
The JYS JQ-04325A24-2B is deployed in medical diagnostic equipment, high-end audio amplifiers, laser printers, optical projection systems, electronic enclosures, and precision cooling devices requiring uniform linear airflow.
