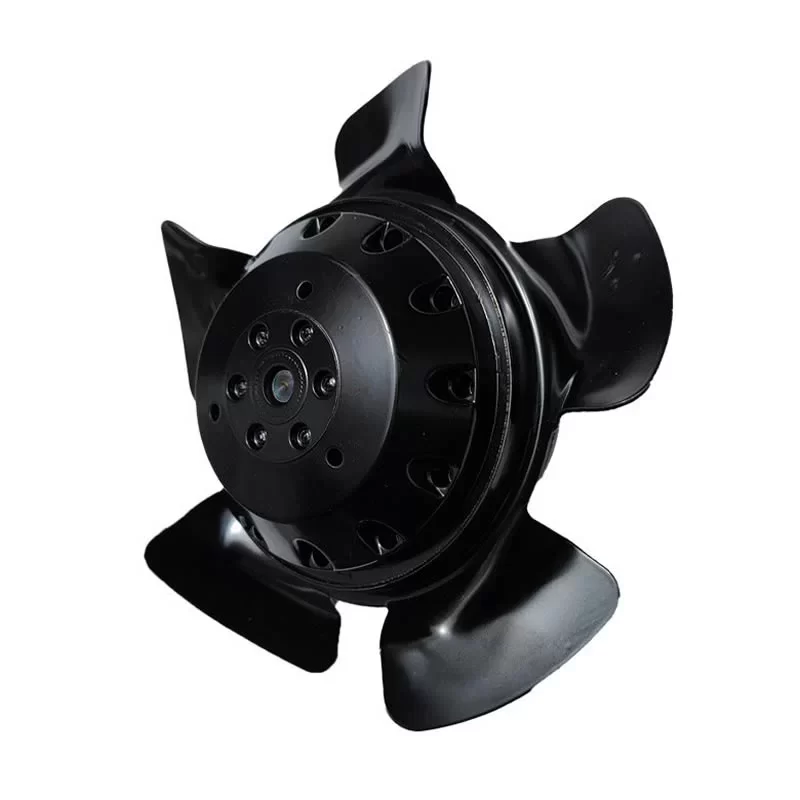

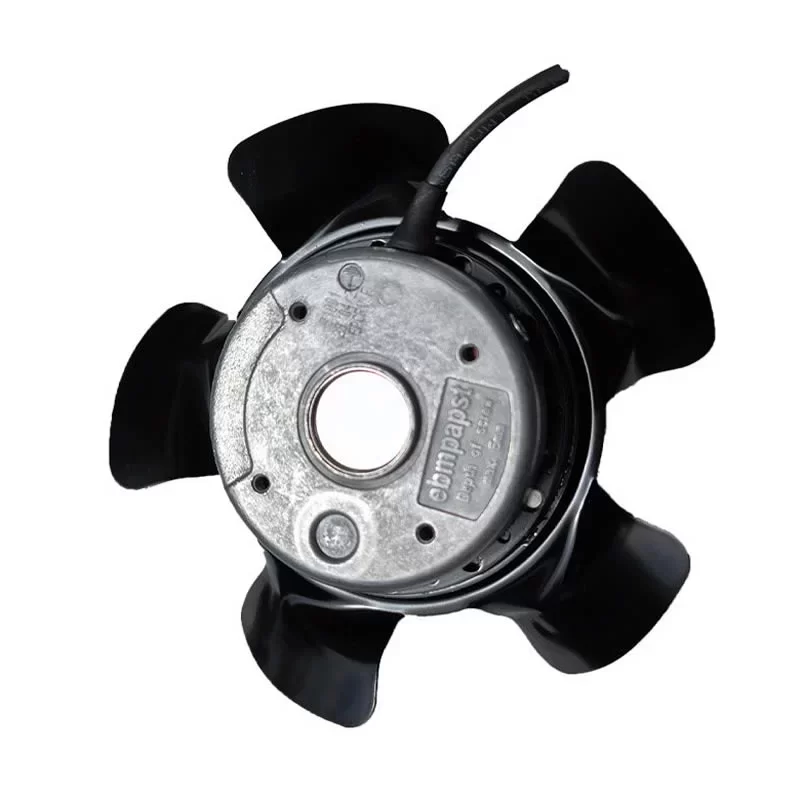

A2D160-AA22-05 ebmpapst 400/480VAC 160mm AC Axial Fan

Description

The ebmpapst A2D160-AA22-05 is a high-performance three-phase AC axial fan featuring straight blades (A series) driven by an M2D068-BC motor. Engineered for a nominal voltage of 400 / 480 VAC at 50 / 60 Hz in star connection (Y) under customer specs (cs) conditions, it delivers multi-frequency performance: operating at 400 V and 50 Hz, it provides a speed of 2,800 min⁻¹, drawing a power input of 40 W, a current draw of 0.19 A, with a min. ambient temperature of -25 °C; operating at 480 V and 60 Hz, it provides a speed of 3,350 min⁻¹, drawing a power input of 52 W, a current draw of 0.18 A, with a min. ambient temperature of -25 °C. Constructed with an impeller size of 160 mm, a mass of 1.2 kg, 5 galvanised sheet steel blades, black-coated rotor surface, this unit ensures robust industrial operation. It features ball bearings, clockwise direction of rotation seen on the rotor, “A” direction of air flow, IP44 degree of protection (depending on installation and position as per EN 60034-5), insulation class “F”, F2-2 humidity class, and continuous S1 duty mode with shaft horizontal or rotor on bottom mounting position. It includes rotor-side condensate discharge holes, lateral cable exit, touch current < 0.75 mA according to IEC 60990, protection class I (if protective earth is connected by customer), conformity with EN 60335-1 and CE standards, and UL 1004-1 and CSA C22.2 Nr.100 approvals. It operates reliably within a transport and storage temperature range of -40 to +80 °C.

A2D160-AA22-05 Fan Parameters
Manufacturer: ebmpapst
Model Number: A2D160-AA22-05
Type: AC Axial Fan – Straight Blades (A Series)
Motor: M2D068-BC
Impeller Size: 160 mm
Mass: 1.2 kg
Number of Blades: 5
Material of Blades: Sheet Steel, Galvanised
Surface of Rotor: Coated in Black
Bearing Motor: Ball Bearing
Direction of Air Flow: “A”
Direction of Rotation: Clockwise, Seen on Rotor
Phase: 3~
Nominal Voltage: 400 / 480 V
Connection: Y
Frequency: 50 / 60 Hz
Type of Data Definition: cs (Customer Specs)
Valid for Approval / Standard: CE

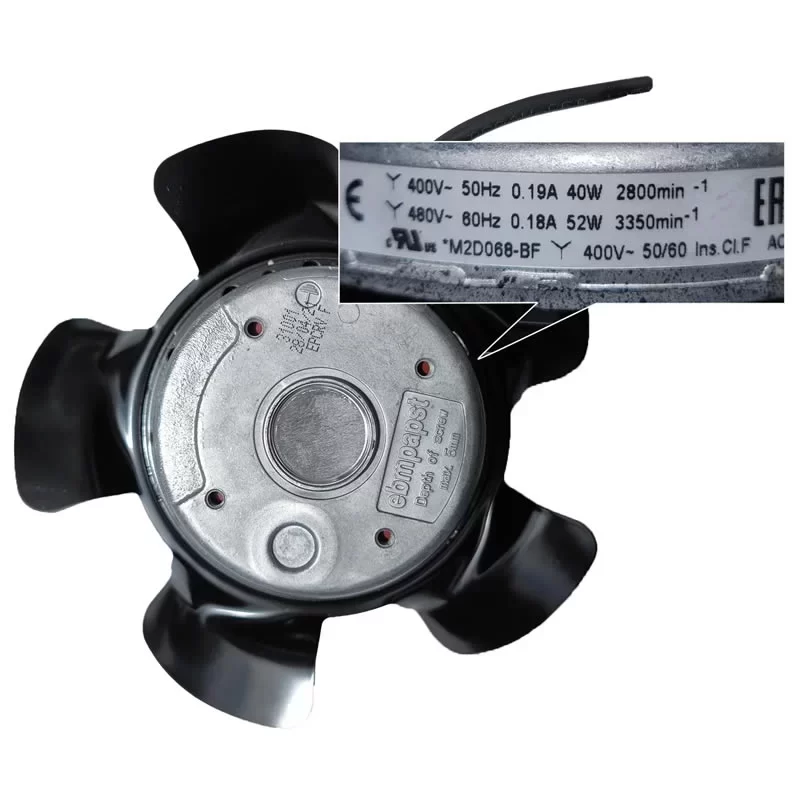

Speed: 2800 min⁻¹ (400V 50Hz) / 3350 min⁻¹ (480V 60Hz)
Power Input: 40 W (400V 50Hz) / 52 W (480V 60Hz)
Current Draw: 0.19 A (400V 50Hz) / 0.18 A (480V 60Hz)
Min. Ambient Temperature: -25 °C
Min. Permissible Ambient Motor Temp. (Transp. / Storage): -40 °C
Max. Permissible Ambient Motor Temp. (Transp. / Storage): +80 °C
Operation Mode: S1
Mounting Position: Shaft Horizontal or Rotor on Bottom; Rotor on Top on Request
Humidity Class: F2-2
Insulation Class: “F”
Cable Exit: Lateral
Condensate Discharge Holes: Rotor-Side
Touch Current Acc. IEC 60990: < 0.75 mA
Type of Protection: IP 44 (Depending on Installation and Position as per EN 60034-5)
Protection Class: I (if Protective Earth is Connected by Customer)
Product Conforming to Standard: EN 60335-1; CE
Approval: UL 1004-1; CSA C22.2 Nr.100

Application
The ebmpapst A2D160-AA22-05 is deployed in industrial automation, servo spindle motor cooling, electrical enclosures, and ventilation systems requiring dependable forced-air cooling.
