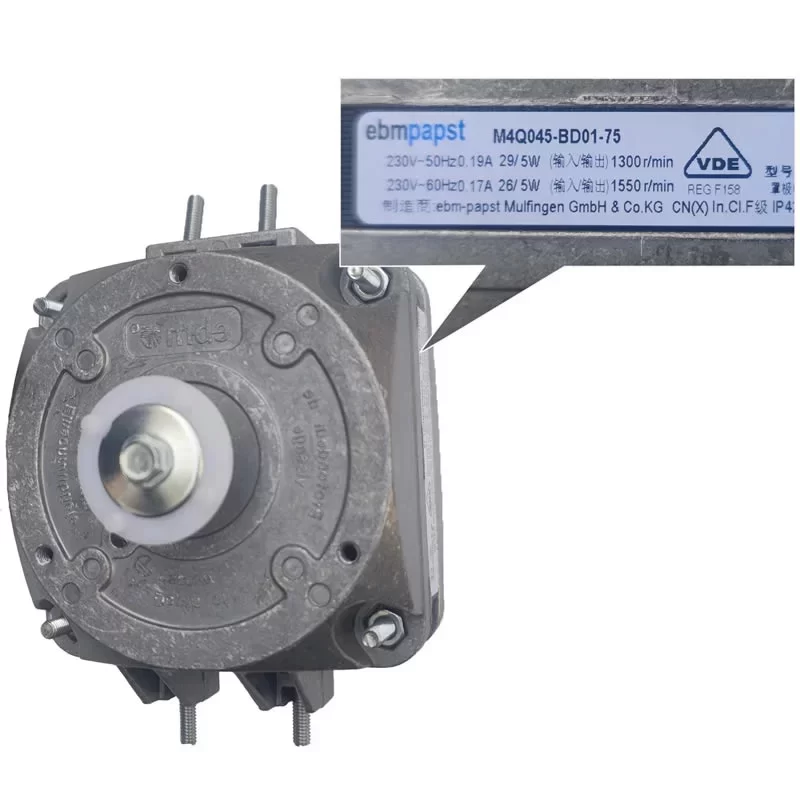

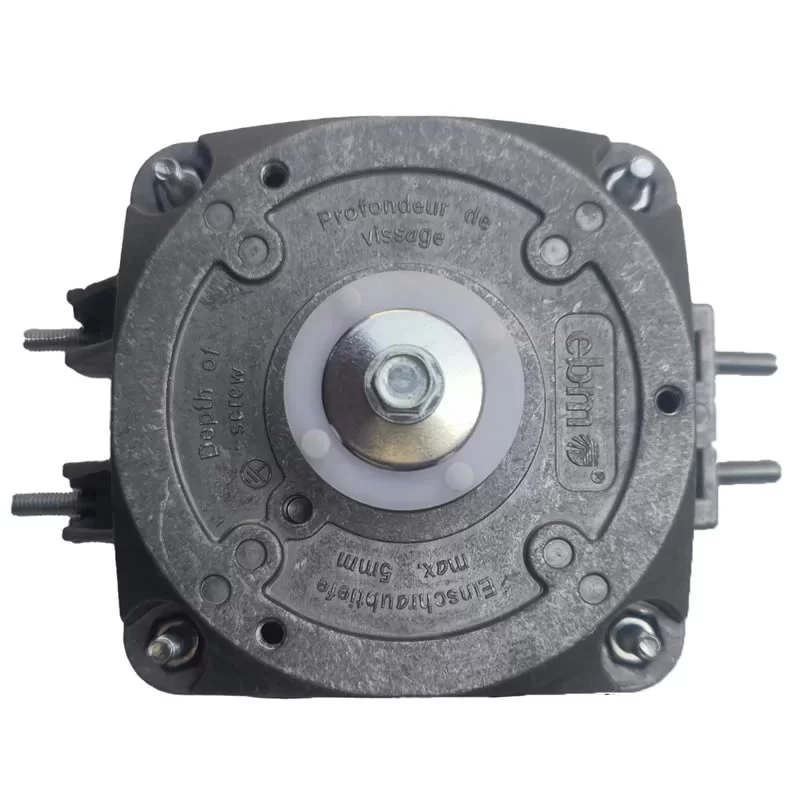

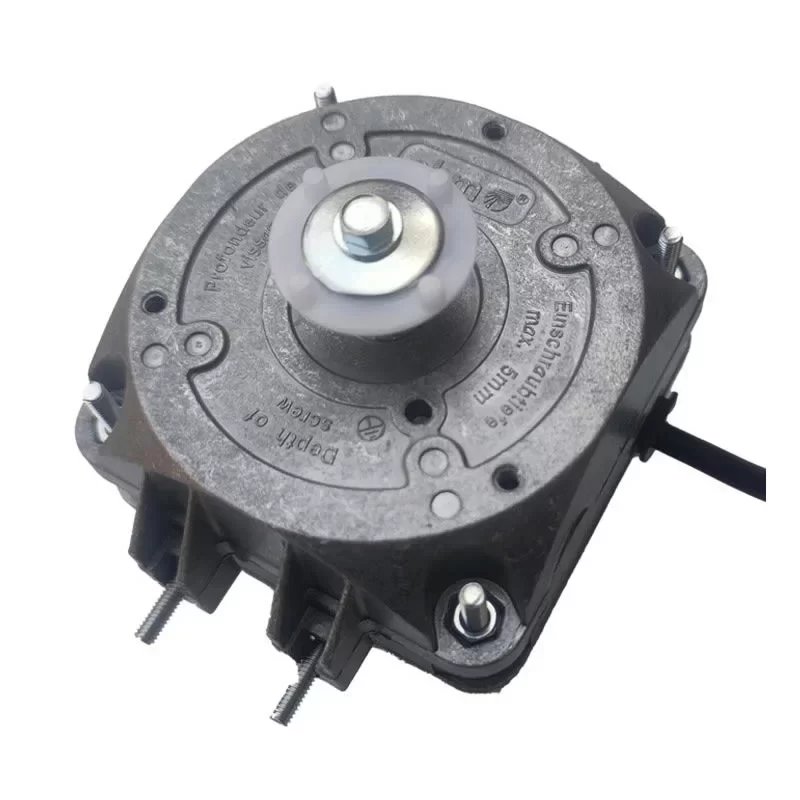

M4Q045-BD01-75 ebmpapst 230VAC 45mm AC Motor

Description

The ebmpapst M4Q045-BD01-75 is a high-performance single-phase AC motor driven by an M4Q045-BD motor. Engineered for a nominal voltage of 230 VAC at 50 / 60 Hz under max. efficiency (me) conditions, it delivers multi-frequency performance: operating at 50 Hz, it provides a speed of 1300 min⁻¹, drawing a power input of 29 W, a power output of 5 W, and a current draw of 0.19 A; operating at 60 Hz, it provides a speed of 1550 min⁻¹, drawing a power input of 26 W, a power output of 5 W, and a current draw of 0.17 A. Constructed with a size of 45 mm, a weight of 0.9 kg, and a die-cast aluminium end shield, this unit ensures robust industrial operation. It features calotte bearings, counter-clockwise direction of rotation seen on the rotor, IP20 degree of protection, insulation class “B”, and continuous S1 duty mode with shaft horizontal mounting position. It includes impedance protection, lateral cable exit, touch current < 0.75 mA according to IEC 60990, protection class I (if protective earth is connected by customer), conformity with CE standards, and VDE approval. It operates reliably within a transport and storage temperature range of -40 to +80 °C.

M4Q045-BD01-75 Fan Parameters
Manufacturer: ebmpapst
Model Number: M4Q045-BD01-75
Motor: M4Q045-BD
Type: AC Motor
Size: 45 mm
Weight: 0.9 kg
Material of End Shield: Die-Cast Aluminium
Bearing Motor: Calotte Bearing
Direction of Rotation: Counter-Clockwise, Seen on Rotor
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Type of Data Definition: me (Max. Efficiency)
Valid for Approval / Standard: CE
Speed: 1300 min⁻¹ (50 Hz) / 1550 min⁻¹ (60 Hz)
Power Input: 29 W (50 Hz) / 26 W (60 Hz)
Power Output: 5 W
Current Draw: 0.19 A (50 Hz) / 0.17 A (60 Hz)
Min. Permissible Ambient Motor Temp. (Transp. / Storage): -40 °C
Max. Permissible Ambient Motor Temp. (Transp. / Storage): +80 °C
Operation Mode: S1
Mounting Position: Shaft Horizontal
Condensate Discharge Holes: None
Motor Protection: Impedance Protected
Cable Exit: Lateral
Touch Current Acc. IEC 60990: < 0.75 mA
Type of Protection: IP20
Insulation Class: “B”
Protection Class: I (if Protective Earth is Connected by Customer)
Product Conforming to Standard: CE
Approval: VDE

Application
The ebmpapst M4Q045-BD01-75 is deployed in commercial refrigeration systems, evaporators, display cases, unit coolers, and ventilation equipment requiring dependable forced-air cooling and motor performance.
