Description

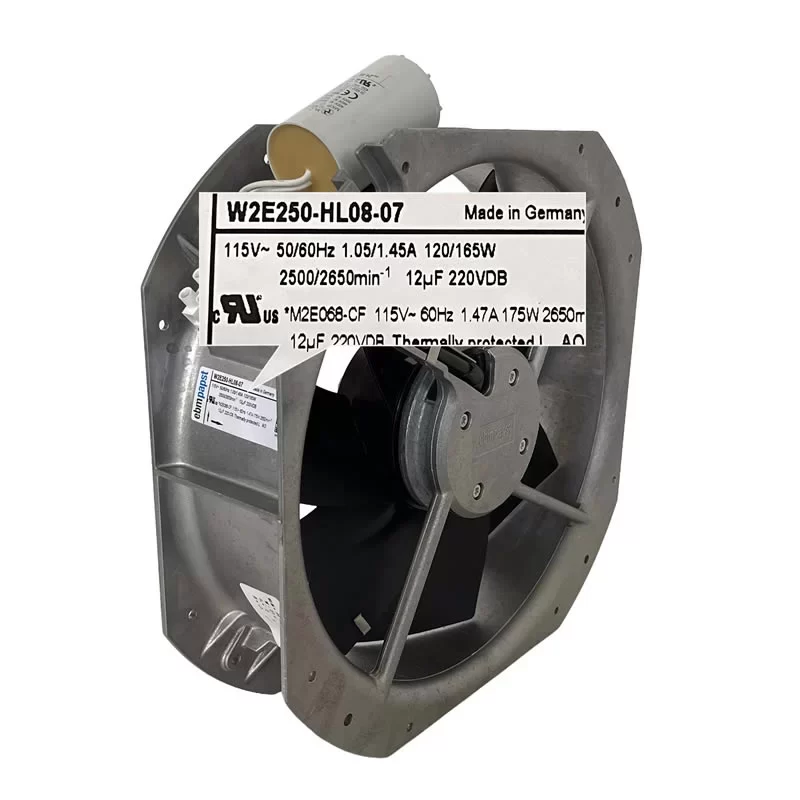

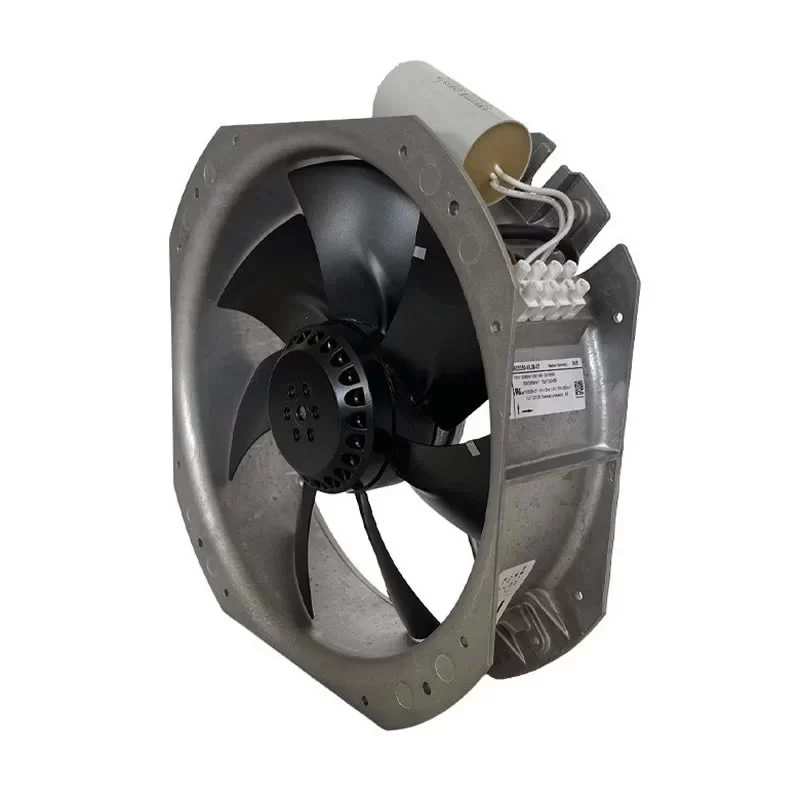

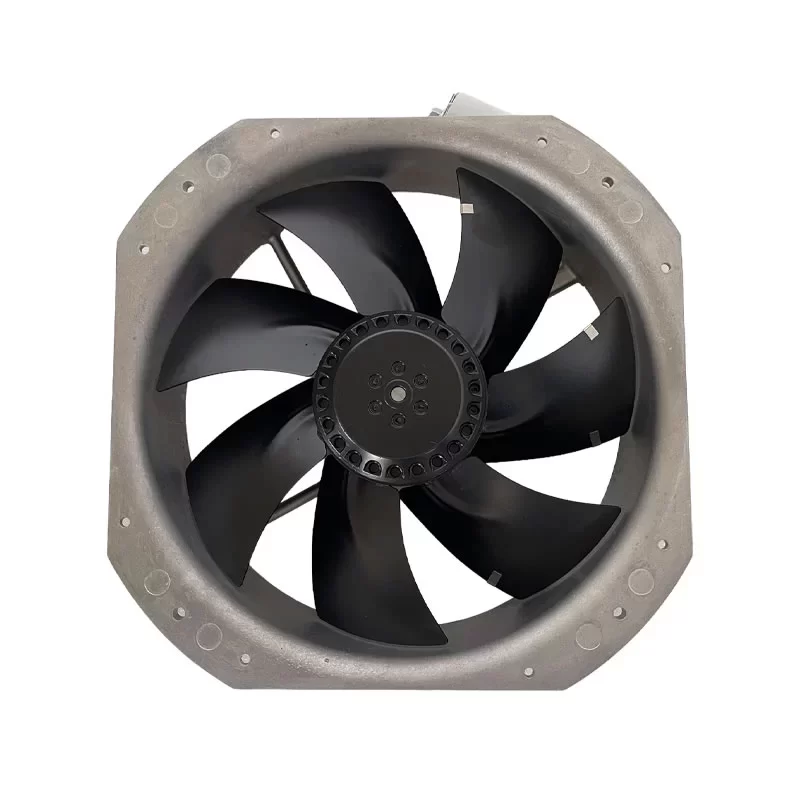

The ebmpapst W2E250-HL08-07 is a high-performance 115VAC single-phase AC axial compact fan featuring a fan size of 250 mm and external dimensions of 280 x 280 x 80 mm. Powered by an M2E068-CF motor, this sickled-blade (S series) axial fan delivers reliable airflow and static pressure performance. Operating at a rated speed of 2,500 / 2,650 RPM under 50 / 60 Hz, it draws a maximum current of 1.05 / 1.45 A with a power consumption of 120 / 165 W and utilizes an integrated 12 µF / 220 VDB motor capacitor. Constructed with black-coated sheet steel blades, a die-cast aluminium wall ring, precision ball bearings, and an IP44 protection rating, it weighs 2.78 kg and supports continuous S1 operation across ambient temperatures ranging from -25 to +50 °C (at 50 Hz) and -25 to +30 °C (at 60 Hz).
W2E250-HL08-07 Fan Parameters
Manufacturer: ebmpapst
Model Number: W2E250-HL08-07
Motor Model: M2E068-CF
Type: AC Axial Compact Fan (Sickled Blades, S Series)
Fan Size: 250 mm
Dimensions: 280 x 280 x 80 mm
Weight: 2.78 kg
Blade Material: Sheet steel, coated in black
Wall Ring Material: Die-cast aluminium
Number of Blades: 7
Rotor Surface: Coated in black
Airflow Direction: “V”
Direction of Rotation: Counter-clockwise, viewed toward rotor
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (115V 50Hz / 115V 60Hz)
Nominal Voltage: 115 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 1.05 / 1.45 A
Starting Current: 1.82 / 1.8 A
Max. Power Consumption: 120 / 165 W
Motor Capacitor: 12 µF / 220 VDB
Capacitor Standard: S0
Rated Speed: 2,500 / 2,650 RPM (min⁻¹)
Max. Back Pressure: 130 / 90 Pa (0.52 / 0.36 inAq)
Ingress Protection: IP44
Insulation Class: Class B
Humidity Class: F1-2
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +50 °C (at 50 Hz), -25 – +30 °C (at 60 Hz)
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Electrical Hookup: Via terminal strips, integrated capacitor connected via terminal strips
Motor Protection: Thermal overload protector (TOP) wired internally
Cable Exit: Variable
Protection Class: Class I (if protective earth is connected by customer)
Safety Approvals: EN 60335-1, CE, UL 2111, CSA C22.2 Nr.77
Application
The ebmpapst W2E250-HL08-07 is deployed in industrial ventilation systems, commercial air conditioning equipment, heat exchangers, refrigeration units, and electronic enclosure thermal management setups.
