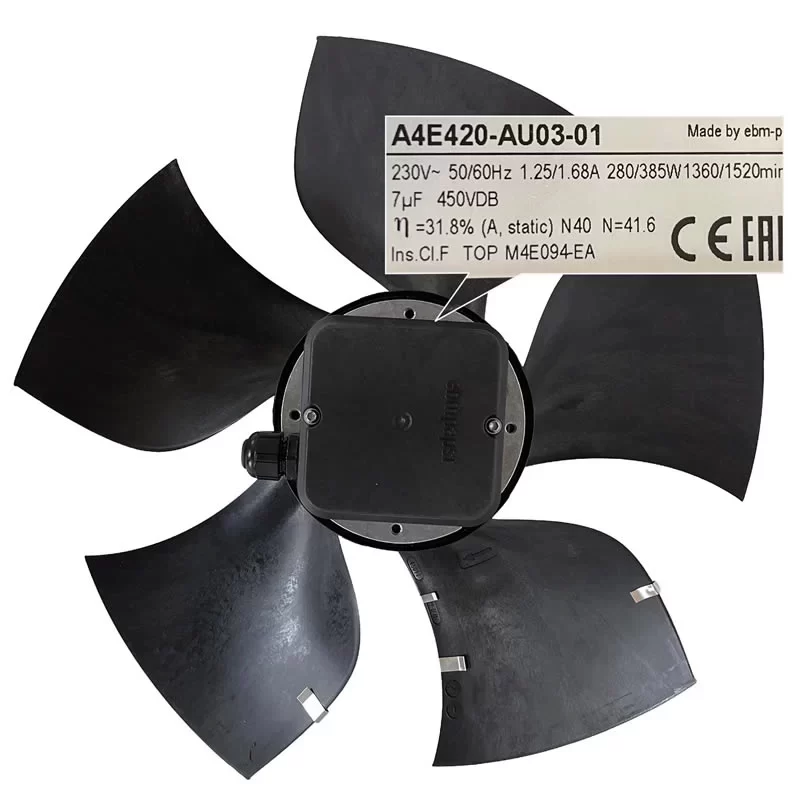

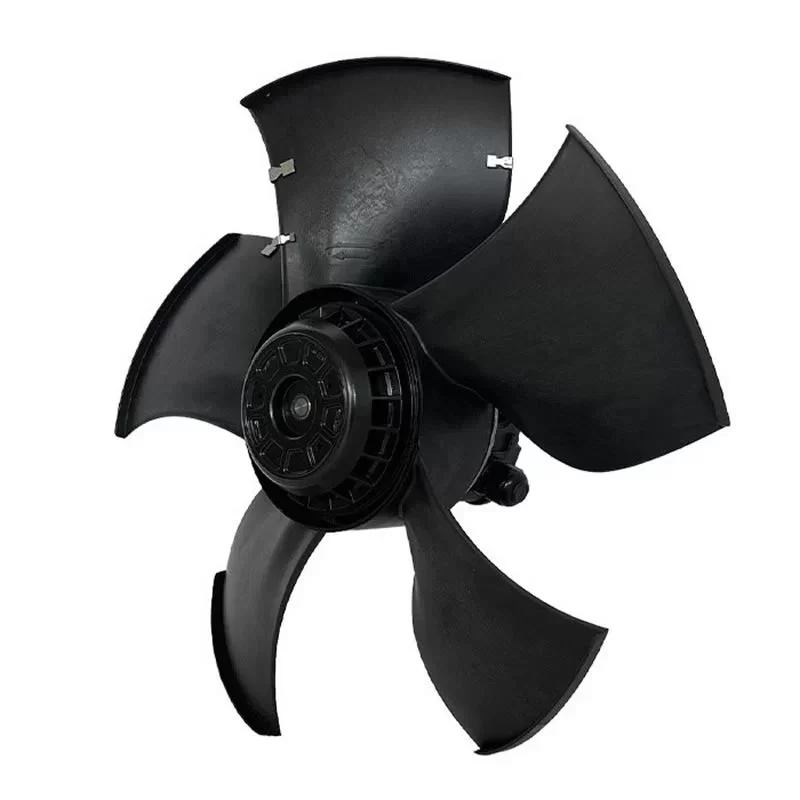

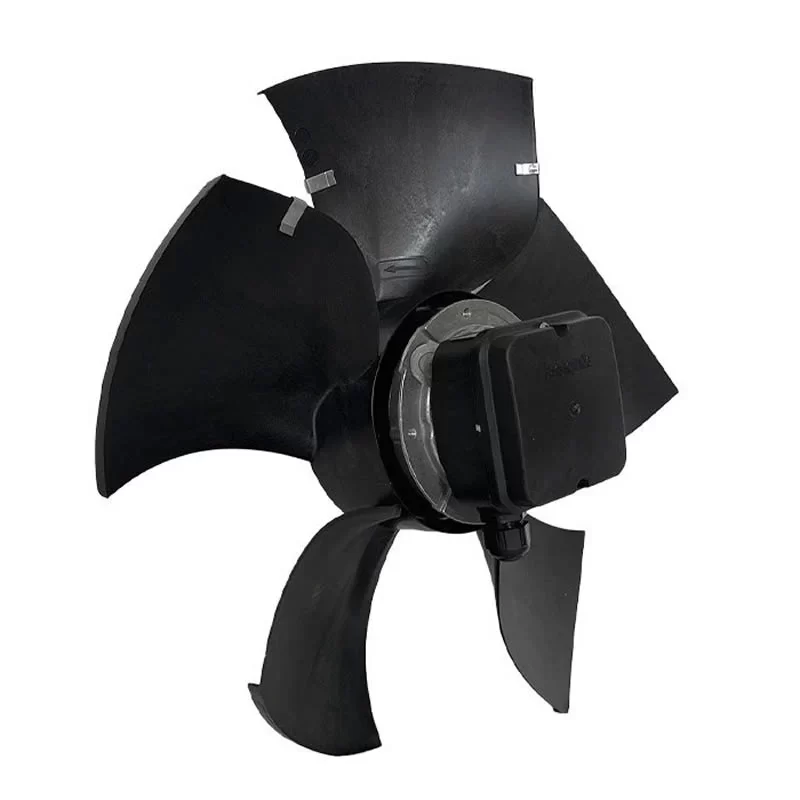

A4E420-AU03-01 ebmpapst 230VAC 420mm AC Axial Fan

Description

The ebmpapst A4E420-AU03-01 is a high-performance 230VAC single-phase AC axial fan featuring an impeller size of 420 mm. Powered by an M4E094-EA motor, this sickle-shaped blade (S series) axial fan delivers reliable airflow and static pressure performance. Operating at a rated speed of 1,360 / 1,520 RPM under 50 / 60 Hz, it draws a maximum current of 1.25 / 1.68 A with a power consumption of 280 / 385 W and utilizes an integrated 7 µF / 450 VDB motor capacitor. It achieves an air flow of 3,205 m³/h at 100 Pa with a max back pressure of 95 / 100 Pa (0.38 / 0.4 in. wg). Constructed with press-fitted sheet steel blades sprayed with PP plastic, precision ball bearings, and an IP54 protection rating, it weighs 4.8 kg and supports continuous S1 operation across ambient temperatures ranging from -40 to +55 °C.

A4E420-AU03-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: A4E420-AU03-01
Motor Model: M4E094-EA
Type: AC Axial Fan (Sickle-Shaped Blades, S Series)
Fan Size: 420 mm
Motor Size: 94
Weight: 4.8 kg
Blade Material: Press-fitted sheet steel blank, sprayed with PP plastic
Terminal Box Material: PP plastic
Number of Blades: 5
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 1.25 / 1.68 A
Max. Power Consumption: 280 / 385 W
Motor Capacitor: 7 µF / 450 VDB
Rated Speed: 1,360 / 1,520 RPM (min⁻¹)
Max. Back Pressure: 95 / 100 Pa (0.38 / 0.4 in. wg)
Air Flow: 3,205 m³/h (at 100 Pa)
Ingress Protection: IP54
Insulation Class: Class F
Environmental Protection Class: H2
Operating Mode: S1 (Continuous operation)
Operating Temperature: -40 – +55 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: <= 3.5 mA (per IEC 60990)
Electrical Hookup: Terminal box
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60034-1, CE, EAC

Application
The ebmpapst A4E420-AU03-01 is deployed in industrial ventilation systems, commercial air conditioning equipment, heat exchangers, refrigeration units, and agricultural ventilation setups.
