Description

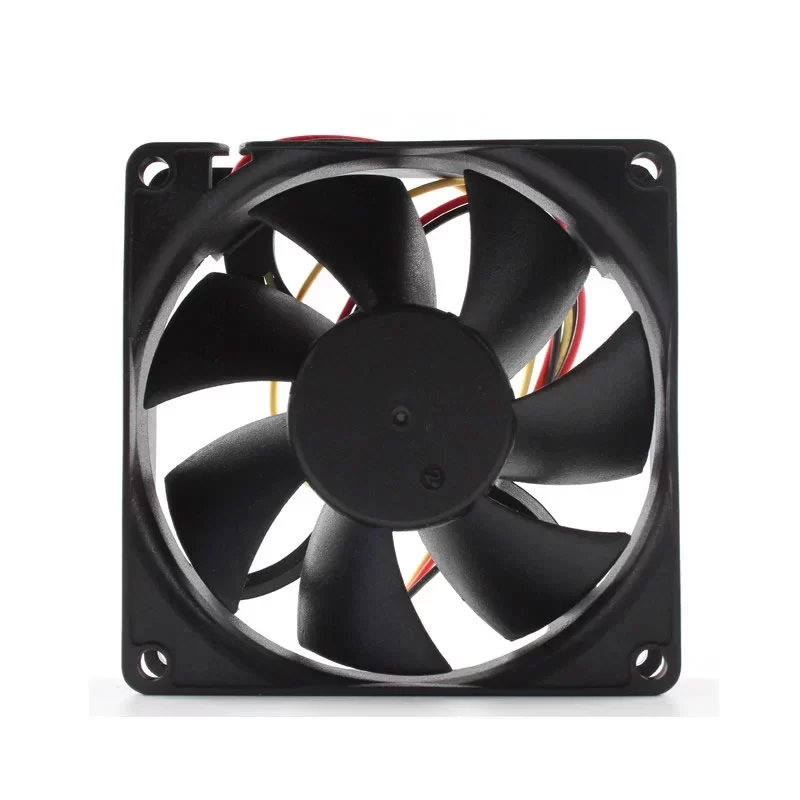

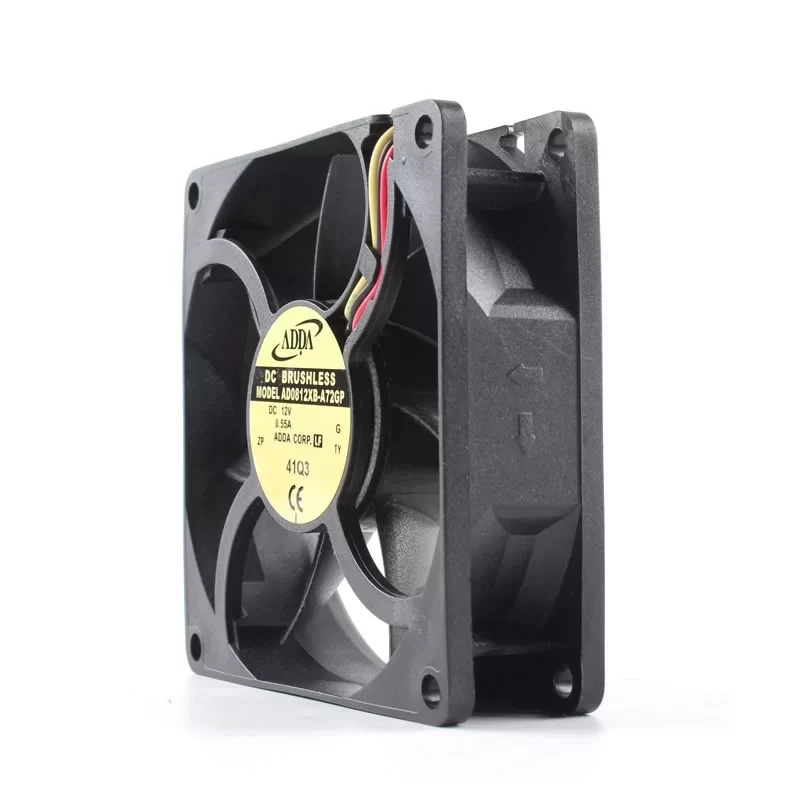

The ADDA AD0812XB-A72GP is a high-performance DC Axial Fan with dimensions of 80 x 80 x 25 mm. Featuring dual ball bearings, a durable plastic frame (PBT UL 94V-0), and a 7-blade plastic impeller (PBT UL 94V-0), this compact cooling fan delivers a Working Air Flow of 60.10 CFM (102.1 m³/h / 1.70 m³/min) and a Static Pressure Increase of 8.38 mmH₂O (82.20 Pa / 0.33 inH₂O) at a rated speed of 4,500 RPM. Operating on a nominal voltage of 12 VDC within an operating voltage range of 10.8 – 13.2 VDC, it features a Max. Current Draw of 0.55 A with a Max. Power Consumption of 6.60 W and includes 3-wire lead connections with tachometer signal output. Built for continuous operation, it has a Weight of 0.086 kg, operates at 46.5 dBA within a temperature range of -10 to +70 °C, offers a life expectancy of 70,000 hours, and holds safety certifications including UL, CUL, TUV, CE, and RoHS.
AD0812XB-A72GP Fan Parameters
Manufacturer: ADDA
Model Number: AD0812XB-A72GP
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Dimensions: 80 x 80 x 25 mm
Impeller Size: 75 mm
Number of Blades: 7
Weight: 0.095 kg
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (3 Wires, Tachometer Output)
Motor Protection: Auto Restart / Polarity Protection
Rated Speed: 4,500 RPM (min⁻¹)
Max. Current Draw: 0.55 A
Max. Power Consumption: 6.60 W
Max. Air Flow: 60.10 CFM (102.1 m³/h / 1.70 m³/min)
Max. Static Pressure: 8.38 mmH₂O (82.20 Pa / 0.33 inH₂O)
Noise Level: 46.5 dBA
Operating Temperature: -10 – +70 °C
Storage Temperature: -40 – +70 °C
Life Expectancy: 70,000 hours
Safety Approvals: UL, CUL, TUV, CE, RoHS
Application
The ADDA AD0812XB-A72GP is deployed in high-density server enclosures, industrial workstations, network switches, power supplies, telecom equipment, and electronic cooling systems requiring compact, high-airflow thermal management.
