Description

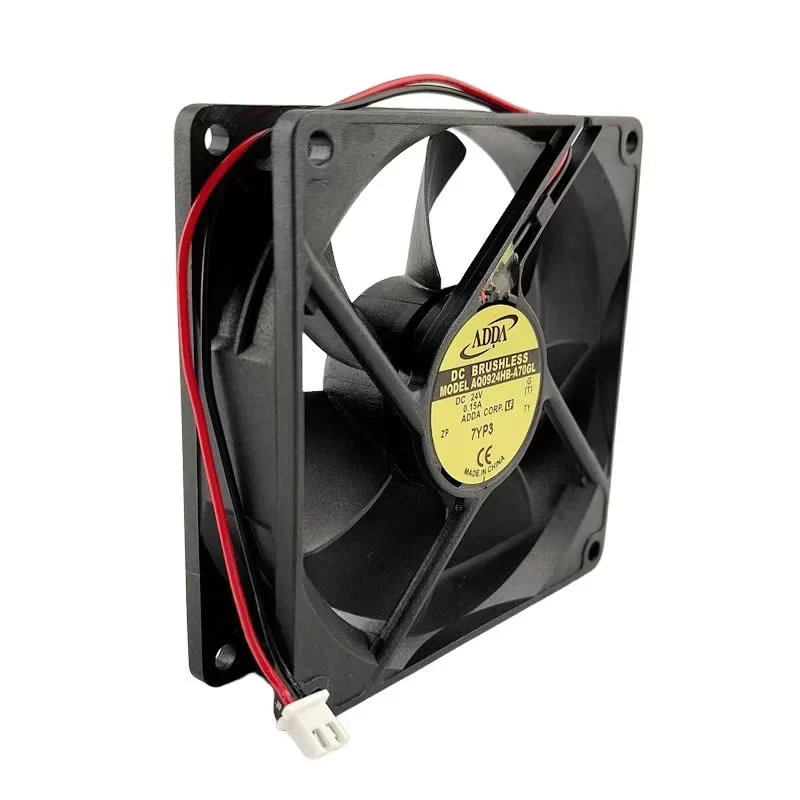

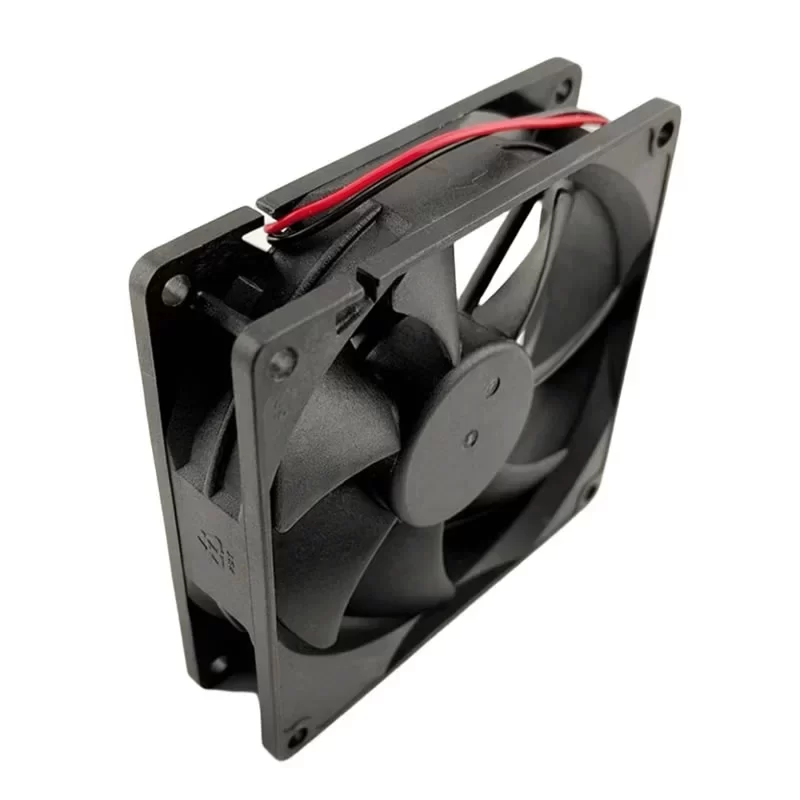

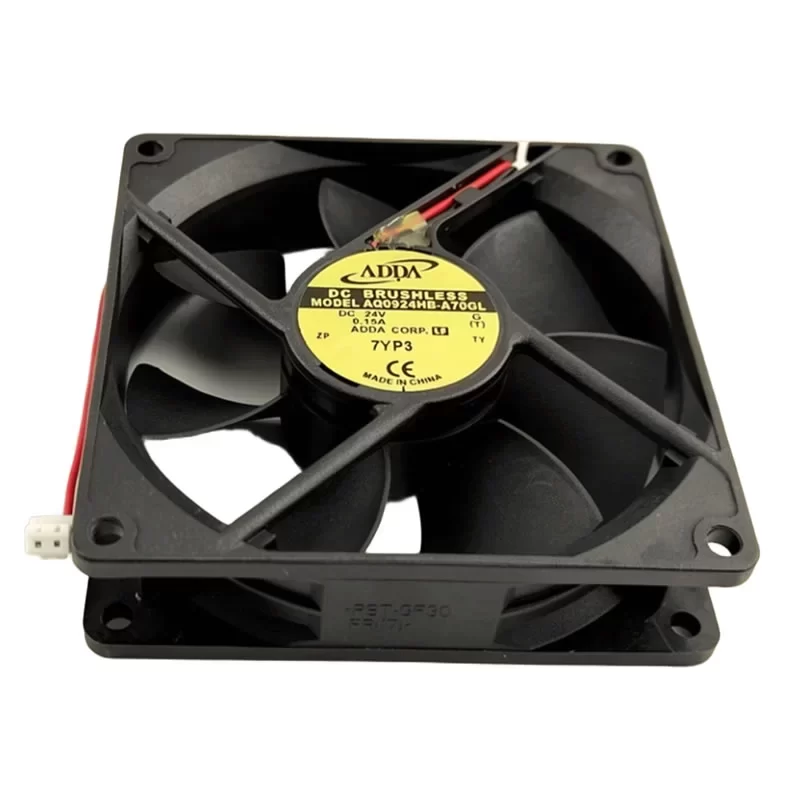

The ADDA AQ0924HB-A70GL is a high-performance DC Axial Fan with dimensions of 92 x 92 x 25 mm, operating at a nominal voltage of 24 VDC. Constructed with a thermoplastic housing (UL 94V-0), a thermoplastic impeller, and maintenance-free ball bearings, it has a weight of 103 g. Driven by a brushless DC motor operating across a voltage range of 14.0 – 27.6 VDC, it draws a rated current of 0.15 A with a power consumption of 3.60 W. Operating at a nominal speed of 2900 RPM, it produces a max. air flow of 52.50 CFM (89.10 m³/h / 1.49 m³/min) and a max. static pressure of 3.28 mmH₂O (32.17 Pa / 0.13 inH₂O) with a noise level of 35.0 dBA. Engineered for demanding industrial environments, it features an IP55 degree of protection against dust and water jets, and complies with CE, TUV, and UL agency approvals.
AQ0924HB-A70GL Fan Parameters
Manufacturer: ADDA
Model Number: AQ0924HB-A70GL
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Weight: 103 g
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Motor Type: Brushless DC Motor
Degree of Protection: IP55 (Waterproof & Dustproof)
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Power Consumption: 3.60 W
Speed: 2900 RPM
Max. Air Flow: 52.50 CFM (89.10 m³/h / 1.49 m³/min)
Max. Static Pressure: 3.28 mmH₂O (32.17 Pa / 0.13 inH₂O)
Noise Level: 35.0 dBA
Agency Approvals: CE, TUV, UL
Application
The ADDA AQ0924HB-A70GL is deployed in outdoor telecom cabinets, industrial frequency converters, harsh environment automation control panels, solar inverters, and heavy machinery requiring reliable waterproof and dustproof active cooling.
