Description

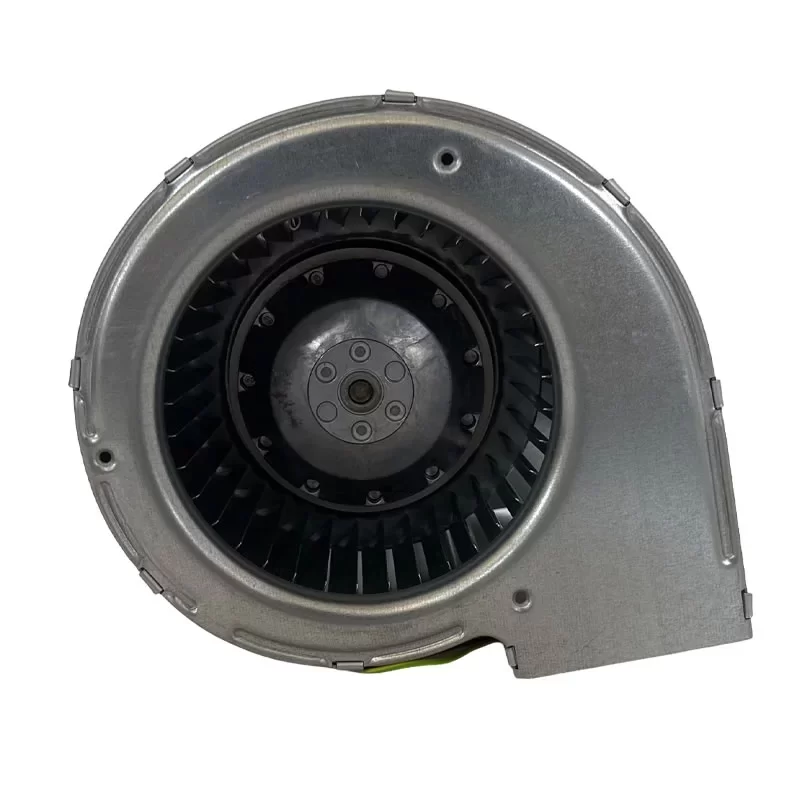

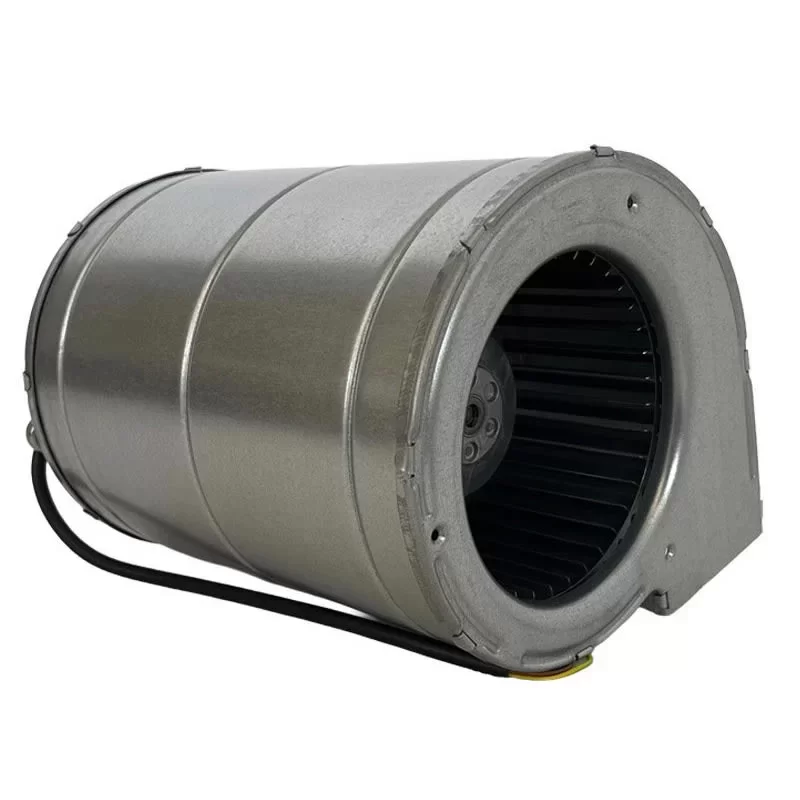

The ebmpapst D2E133-AM67-64 is a high-performance 115VAC single-phase AC centrifugal fan featuring a fan size of 133 mm and external dimensions of 215 x 180 x 170.5 mm. Powered by an M2E068-DF motor, this forward-curved, dual-intake motorized blower with housing (without flange) delivers reliable airflow and static pressure performance. Operating at a rated speed of 1,400 RPM under 60 Hz, it draws a maximum current of 1.66 / 1.75 A with a power consumption of 190 / 205 W and utilizes an integrated 12 µF / 220 VDB motor capacitor. Constructed with galvanized sheet steel impellers and housing, precision ball bearings, and an IP44 protection rating (installation- and position-dependent), it weighs 3.6 kg and supports continuous S1 operation across ambient temperatures ranging from -25 to +30 °C.
D2E133-AM67-64 Fan Parameters
Manufacturer: ebmpapst
Model Number: D2E133-AM67-64
Motor Model: M2E068-DF
Type: AC Centrifugal Fan (Forward-Curved, Dual-Intake with Housing without Flange)
Fan Size: 133 mm
Dimensions: 215 x 180 x 170.5 mm
Weight: 3.6 kg
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Motor Suspension: Motor mounted with brackets on one side
Rotor Surface: Unpainted
Direction of Rotation: Clockwise, viewed toward rotor
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)

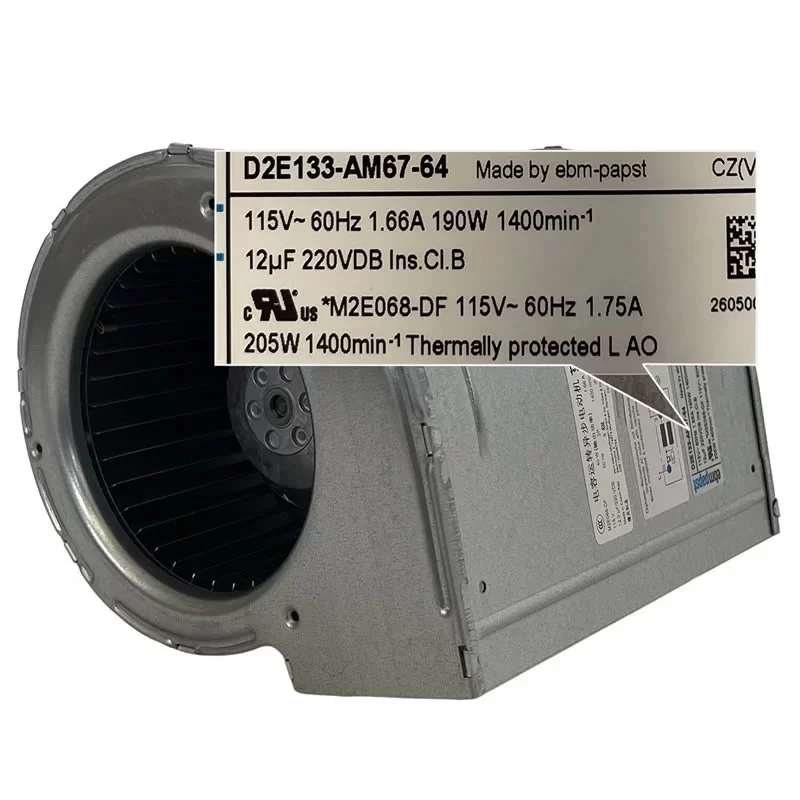

Data Sequence: (115V 60Hz CE / 115V 60Hz UL)
Nominal Voltage: 115 VAC
Frequency: 60 Hz
Max. Current Draw: 1.66 / 1.75 A
Max. Power Consumption: 190 / 205 W
Motor Capacitor: 12 µF / 220 VDB
Capacitor Standard: S0 (CE) / UL
Rated Speed: 1,400 RPM (min⁻¹)
Ingress Protection: IP44 (installation- and position-dependent)
Insulation Class: Class B
Environmental Protection Class: H0 (dry environment)
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +30 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60335-1, CE, UL 2111, CSA C22.2 No. 77
Application
The ebmpapst D2E133-AM67-64 is deployed in HVAC ventilation units, commercial air conditioning equipment, air purification systems, and electronic enclosure thermal management setups.
