D2E133-DM27-D8 ebmpapst 230VAC 133mm AC Centrifugal Fan

Description

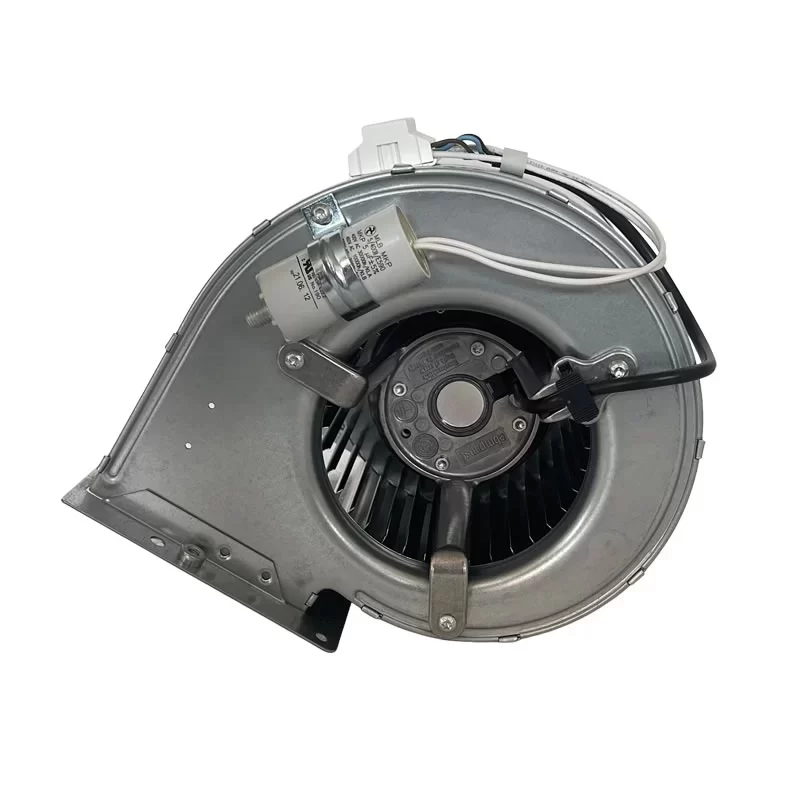

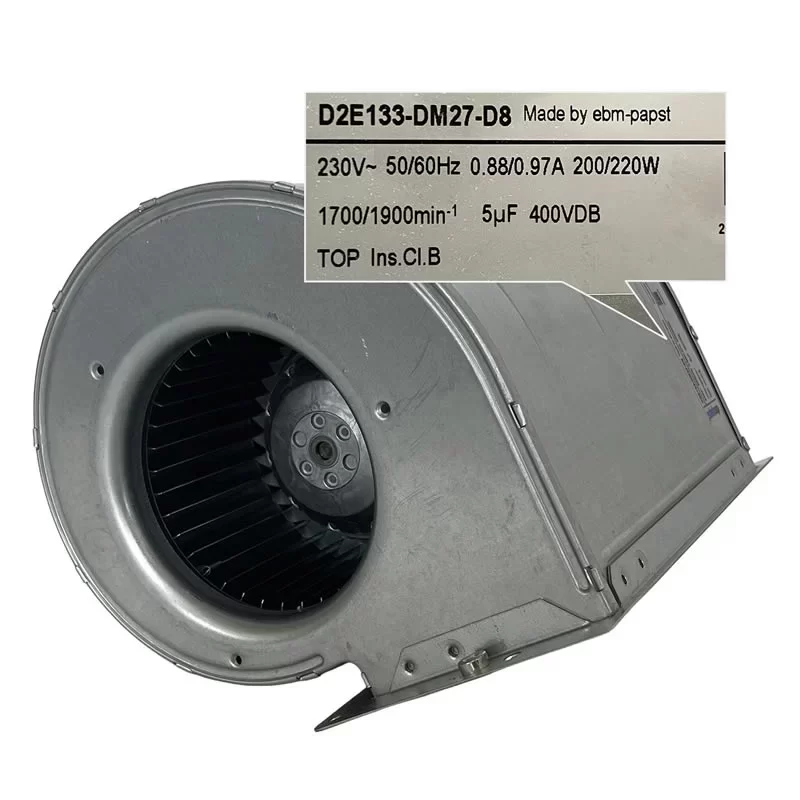

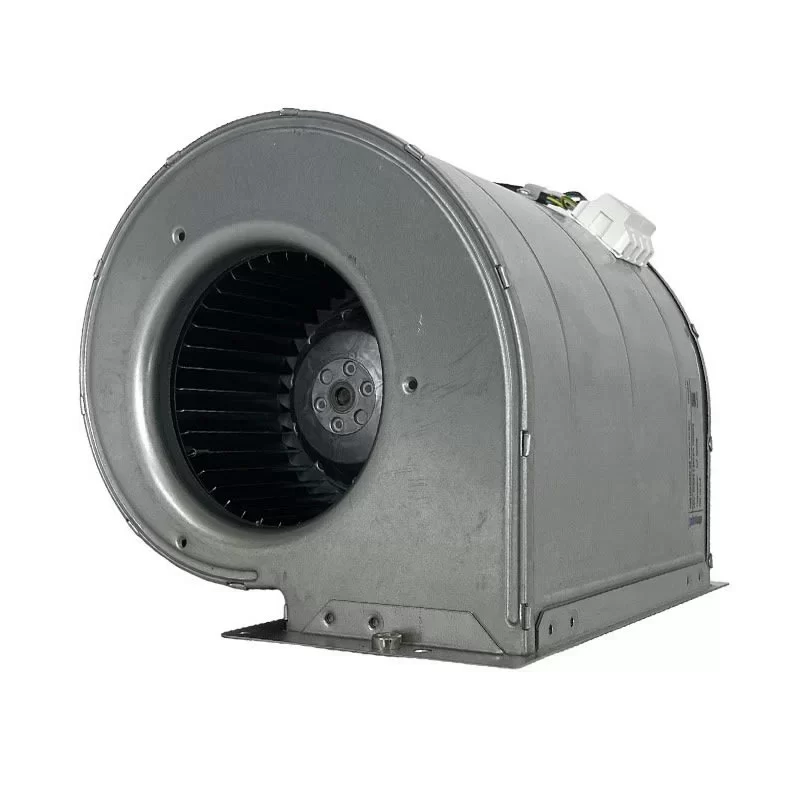

The ebmpapst D2E133-DM27-D8 is a high-performance 230VAC single-phase AC centrifugal fan featuring a fan size of 133 mm and external dimensions of 270 x 203 x 213 mm. Powered by an M2E068-DF motor, this forward-curved, dual-intake motorized blower with housing and flange delivers reliable airflow and static pressure performance. Operating at a rated speed of 1,700 / 1,900 RPM under 50 / 60 Hz, it draws a maximum current of 0.88 / 0.97 A with a power consumption of 200 / 220 W and utilizes an integrated 5 µF / 400 VDB motor capacitor (S0 safety class). Constructed with hot-dip galvanized sheet steel impellers, housing, and support structure, precision ball bearings, and a robust design, it weighs 4.04 kg and supports continuous S1 operation across ambient temperatures ranging from -25 to +30 °C with an IP44 protection rating (installation- and position-dependent).

D2E133-DM27-D8 Fan Parameters
Manufacturer: ebmpapst
Model Number: D2E133-DM27-D8
Motor Model: M2E068-DF
Type: AC Centrifugal Fan (Forward-Curved, Dual-Intake with Housing and Flange)
Fan Size: 133 mm
Dimensions: 270 x 203 x 213 mm
Weight: 4.04 kg
Impeller Material: Sheet steel, hot-dip galvanized
Housing Material: Sheet steel, hot-dip galvanized
Support Structure Material: Sheet steel, hot-dip galvanized
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 0.88 / 0.97 A
Max. Power Consumption: 200 / 220 W
Motor Capacitor: 5 µF / 400 VDB
Capacitor Standard: S0
Rated Speed: 1,700 / 1,900 RPM (min⁻¹)
Min. Back Pressure: 100 / 150 Pa (0.4 / 0.6 inH₂O)
Ingress Protection: IP44 (installation- and position-dependent)
Insulation Class: Class B
Environmental Protection Class: H0 (dry environment)
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +30 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Electrical Hookup: Via terminal strip, capacitor connected
Motor Protection: Thermal overload protector (TOP) internally connected
Cable Exit: Axial
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60335-1

Application
The ebmpapst D2E133-DM27-D8 is deployed in HVAC ventilation units, commercial air conditioning equipment, air purification systems, and electronic enclosure thermal management setups.
