Description

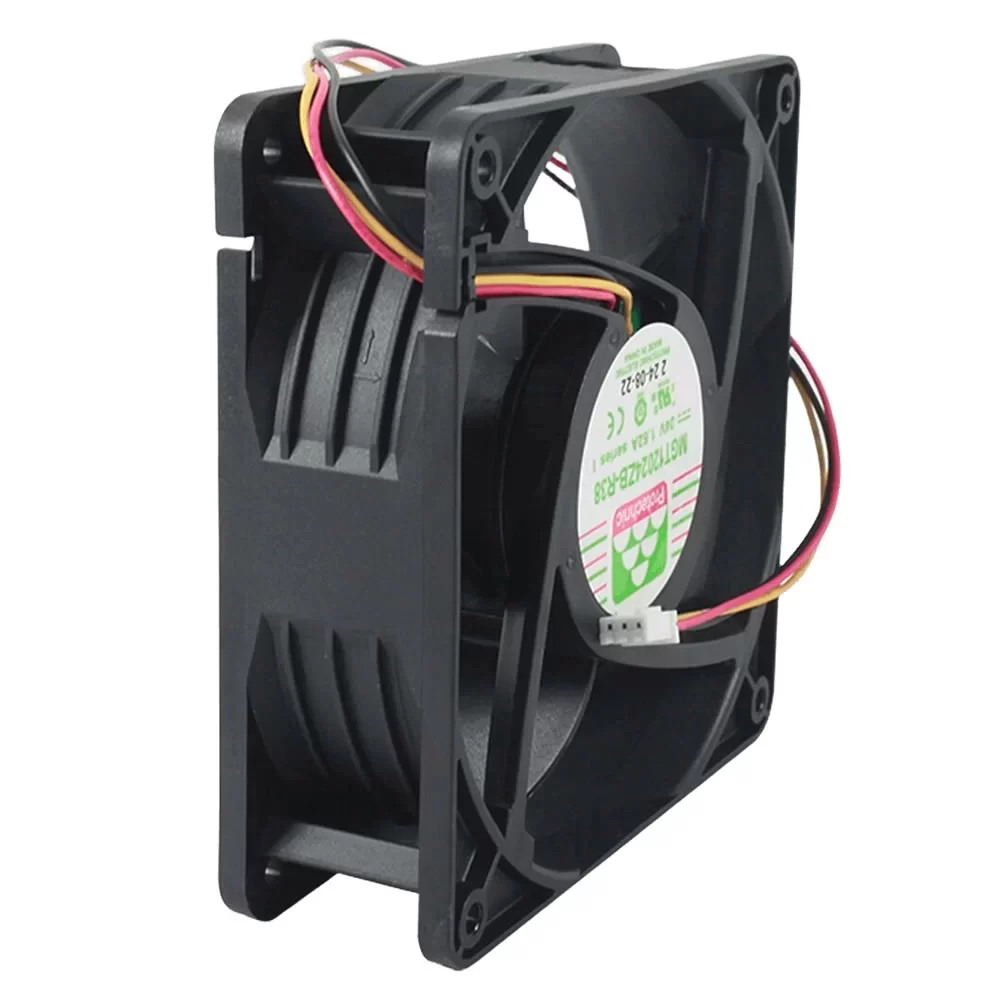

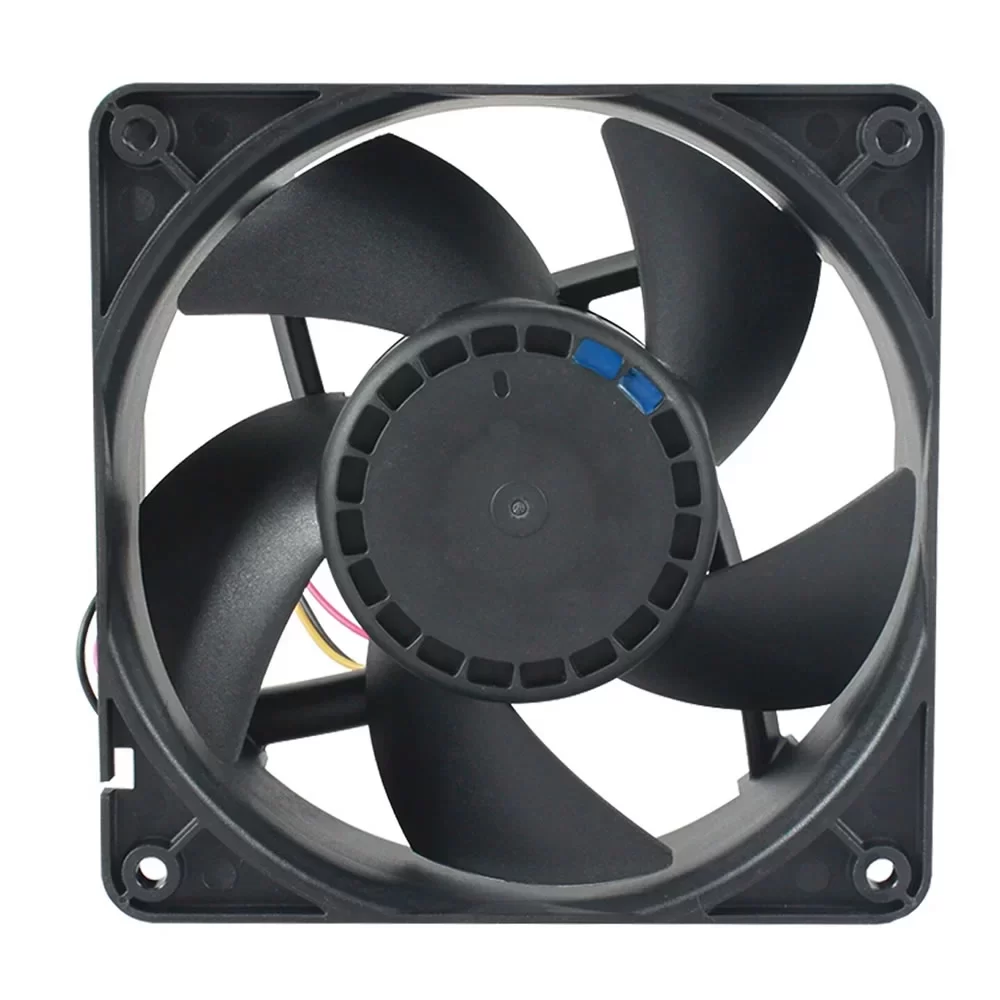

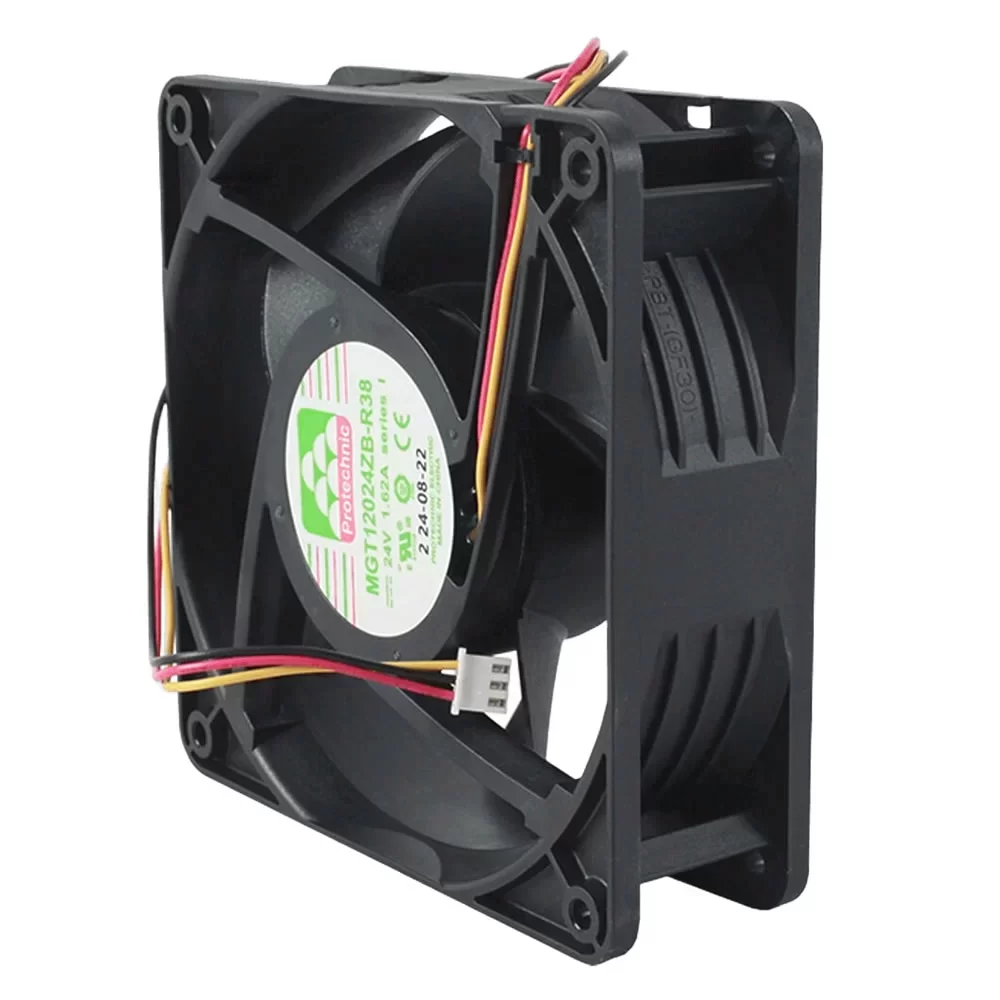

The Protechnic MGT12024ZB-R38I is a high-performance 24 VDC DC Axial Fan with dimensions of 120 x 120 x 38 mm, engineered to deliver exceptional air volume and high-pressure cooling for demanding industrial electronics and server infrastructure. Constructed with a heavy-duty PBT plastic housing (UL94V-0), a PBT plastic impeller (UL94V-0), and precision dual ball bearings, it has a net weight of 348 g. Driven by an advanced brushless DC motor operating at a nominal voltage of 24 VDC, it draws a rated current of 1.62 A with a power consumption of 38.88 W. Operating at a high speed of 6000 RPM, it delivers a Max. Air Flow of 231.20 CFM (392.81 m³/h / 6.55 m³/min) and a Max. Static Pressure of 28.50 mmH₂O (279.49 Pa / 1.12 inAq) with a noise level of 62.2 dBA. Designed with a 3-wire lead setup with integrated FG speed detection (tachometer) signal output, it features reverse polarity protection, locked rotor protection, and complies with CE, cURus, TÜV, and RoHS agency approvals.
MGT12024ZB-R38I Fan Parameters
Manufacturer: Protechnic (Protechnic Electric)
Model Number: MGT12024ZB-R38I
Type: DC Axial Fan
Country of Origin: China
Nominal Voltage: 24 VDC
Rated Current: 1.62 A
Power Consumption: 38.88 W
Motor Type: Brushless DC Motor
Electrical Connection: 3 Lead Wires
Control Interface & Signal: Tachometer (FG) Speed Sensor Output
Motor Protection: Reverse Polarity Protection, Locked Rotor Protection
Speed: 6000 RPM
Max. Air Flow: 231.20 CFM (392.81 m³/h / 6.55 m³/min)
Max. Static Pressure: 28.50 mmH₂O (279.49 Pa / 1.12 inAq)
Noise Level: 62.2 dBA
Dimensions: 120 x 120 x 38 mm
Weight: 348 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cURus, TÜV, RoHS
Application
The Protechnic MGT12024ZB-R38I is deployed in high-density rack servers, telecom power systems, industrial frequency converters, high-capacity energy storage cabinets, and medical imaging equipment requiring intense forced-air thermal management.
