Description

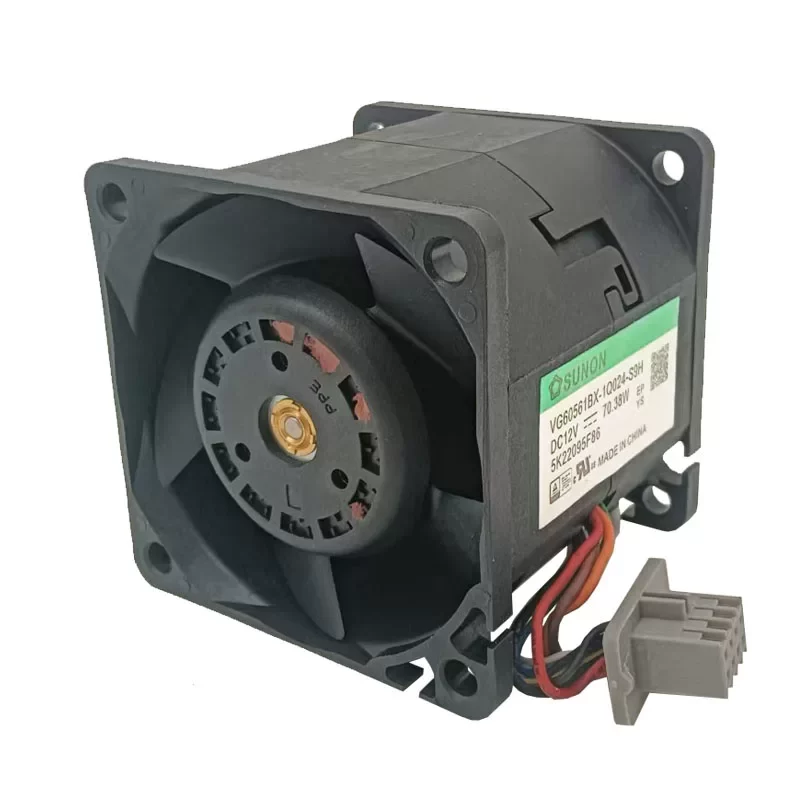

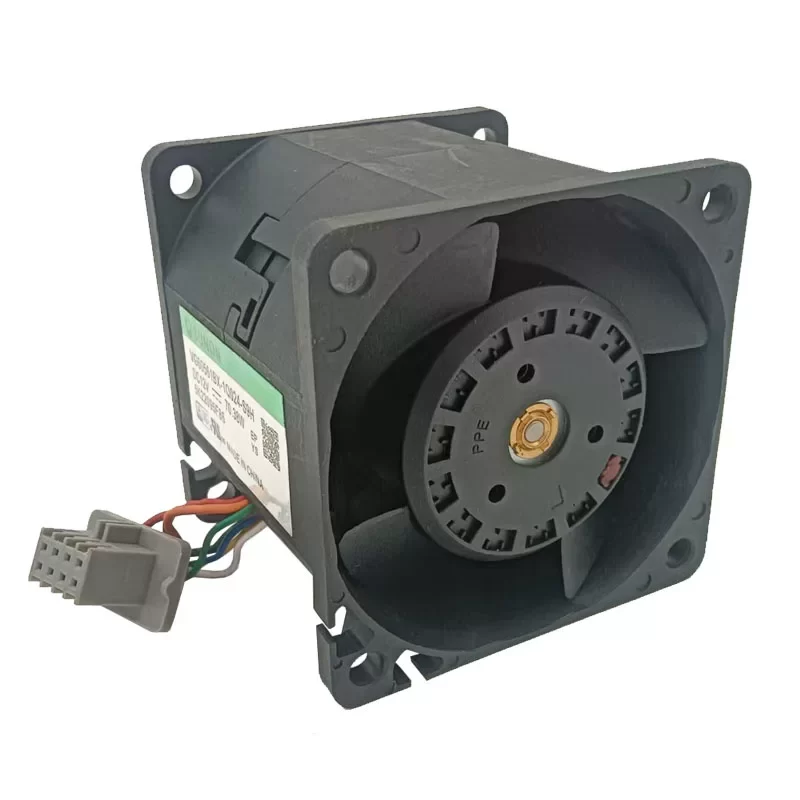

The Sunon VG60561BX-1Q024-S9H is an ultra-high-performance 12 VDC DC Counter-Rotating Axial Fan with dimensions of 60 x 60 x 56 mm, engineered to deliver extreme static pressure and intense forced-air cooling for 1U/2U high-density servers, telecommunications power modules, and enterprise electronics. Constructed with a heavy-duty PBT plastic housing (UL94V-0), dual PBT plastic impellers (UL94V-0), and precision dual ball bearings, it has a net weight of 140 g. Driven by an advanced dual-motor brushless DC drive operating across a voltage range of 10.8 – 13.2 VDC, it draws a rated current of 5.87 A with a power consumption of 70.38 W. Operating at dual counter-rotating speeds of 21500 / 19000 RPM, it provides a Max. Air Flow of 88.50 CFM (150.36 m³/h / 2.51 m³/min) and a Max. Static Pressure of 110.00 mmH₂O (1078.73 Pa / 4.33 inAq) with a noise level of 76.5 dBA. Designed with wire lead connections terminated with an 8-pin server connector supporting PWM speed control and FG tachometer signal output, it features reverse polarity protection, locked rotor protection, and complies with CE, cULus, TÜV, and RoHS agency approvals.
VG60561BX-1Q024-S9H Fan Parameters
Manufacturer: Sunon (Sunonwealth Electric Machine Industry Co., Ltd.)
Model Number: VG60561BX-1Q024-S9H
Type: DC Counter-Rotating Axial Fan
Country of Origin: China
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 5.87 A
Power Consumption: 70.38 W
Motor Type: Brushless DC Dual Motor
Electrical Connection: Wire Leads with 8-Pin Server Connector
Control Interface & Signal: PWM Speed Control, Tachometer (FG) Speed Sensor Output
Motor Protection: Reverse Polarity Protection, Locked Rotor Protection
Speed: 21500 / 19000 RPM
Max. Air Flow: 88.50 CFM (150.36 m³/h / 2.51 m³/min)
Max. Static Pressure: 110.00 mmH₂O (1078.73 Pa / 4.33 inAq)
Noise Level: 76.5 dBA
Dimensions: 60 x 60 x 56 mm (2.36 x 2.36 x 2.20 in)
Weight: 140 g

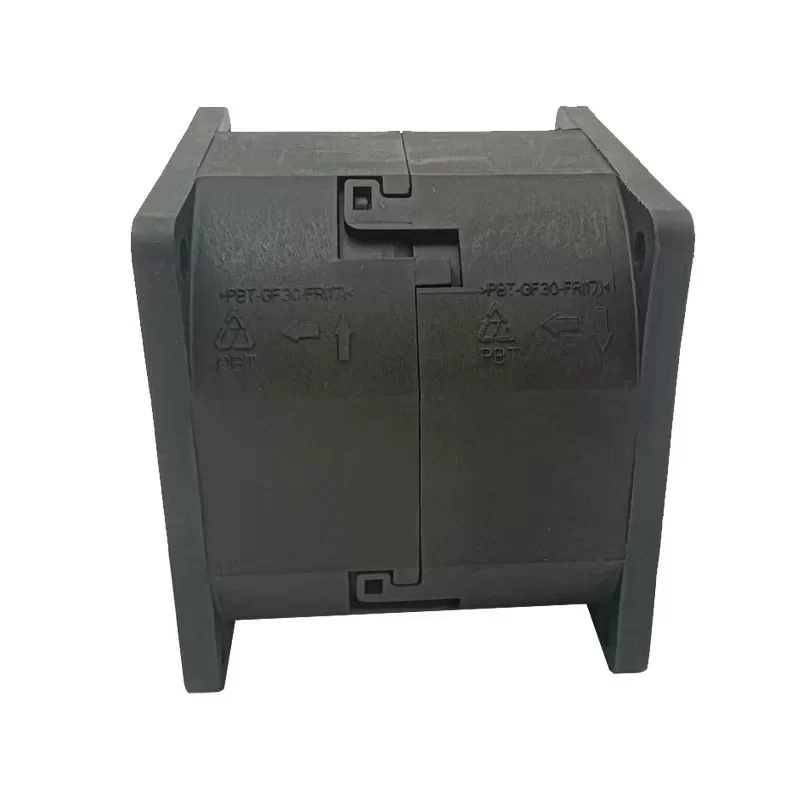

Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cULus, TÜV, RoHS
Application
The Sunon VG60561BX-1Q024-S9H is deployed in high-density 1U/2U rackmount servers, enterprise AI acceleration nodes, telecommunications power rectifiers, high-capacity storage arrays, and industrial frequency converters requiring extreme forced-air heat dissipation under severe system impedance.
