Description

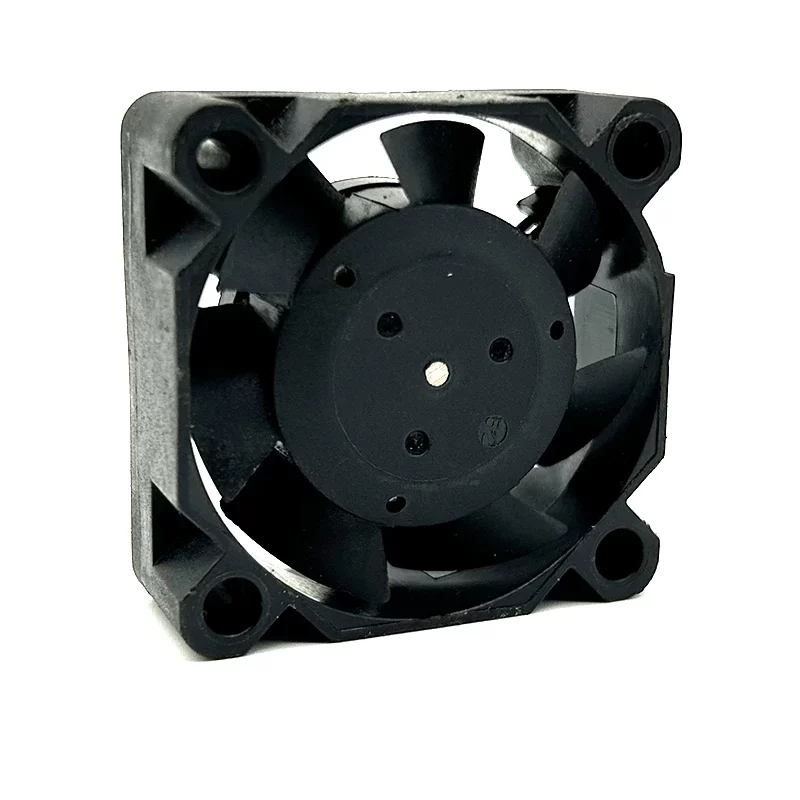

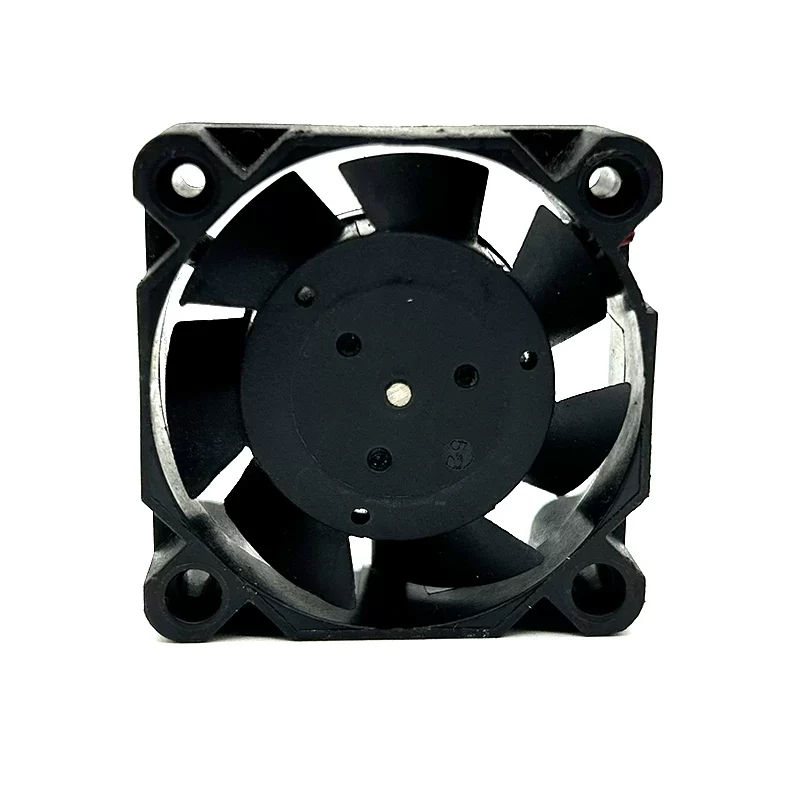

The NONOISE G4015M12D is a high-performance 12 VDC DC Axial Fan with dimensions of 40 x 40 x 15 mm (1.57 x 1.57 x 0.59 in), engineered to deliver quiet, efficient forced-air cooling and spot thermal management for compact electronic equipment and industrial enclosures. Constructed with a durable PBT plastic housing (UL94V-0), a PBT plastic impeller, and precision sleeve bearings (SLV), it has a net weight of 25 g. Driven by an advanced brushless DC motor operating at a nominal voltage of 12 VDC, it draws a rated current of 0.13 A (0.130 A) with a power consumption of 1.56 W. Operating at a nominal speed of 6500 RPM, it provides a Max. Air Flow of 7.80 CFM (13.25 m³/h / 0.22 m³/min) and a Max. Static Pressure of 3.80 mmH₂O (37.27 Pa / 0.15 inAq) with a low noise level of 24.5 dBA. Designed with wire lead connections, it features reverse polarity protection, locked rotor protection, and complies with CE and RoHS agency approvals.
G4015M12D Fan Parameters
Manufacturer: NONOISE (Dong Yang Fan Co., Ltd.)
Model Number: G4015M12D
Type: DC Axial Fan
Country of Origin: Indonesia
Nominal Voltage: 12 VDC
Rated Current: 0.13 A (0.130 A)
Power Consumption: 1.56 W
Motor Type: Brushless DC Motor
Electrical Connection: 2 Wire Leads
Motor Protection: Reverse Polarity Protection, Locked Rotor Protection
Speed: 6500 RPM
Max. Air Flow: 7.80 CFM (13.25 m³/h / 0.22 m³/min)
Max. Static Pressure: 3.80 mmH₂O (37.27 Pa / 0.15 inAq)
Noise Level: 24.5 dBA
Dimensions: 40 x 40 x 15 mm (1.57 x 1.57 x 0.59 in)
Weight: 25 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Sleeve Bearing (SLV)
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, RoHS
Application
The NONOISE G4015M12D is deployed in 3D printers, network routers, small power supply units, CCTV DVRs, set-top boxes, embedded single-board computers, and compact electronic enclosures requiring quiet continuous forced-air cooling.
