Description

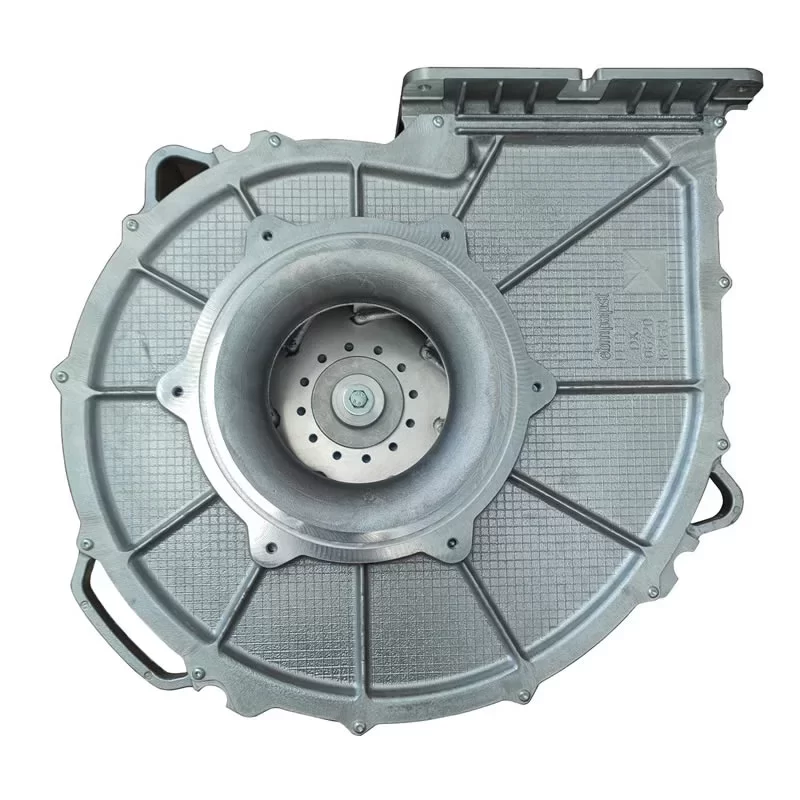

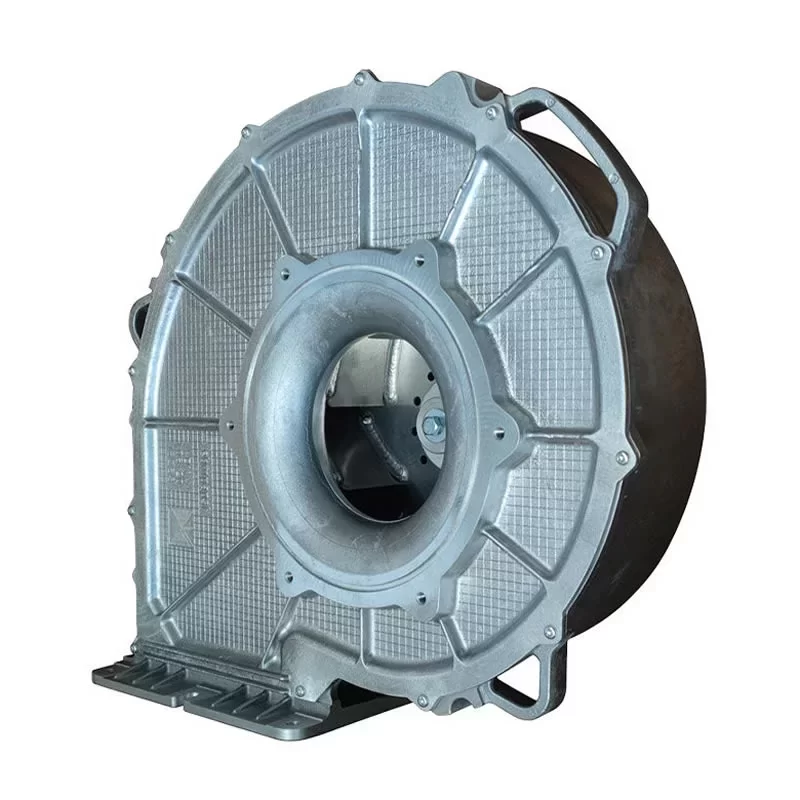

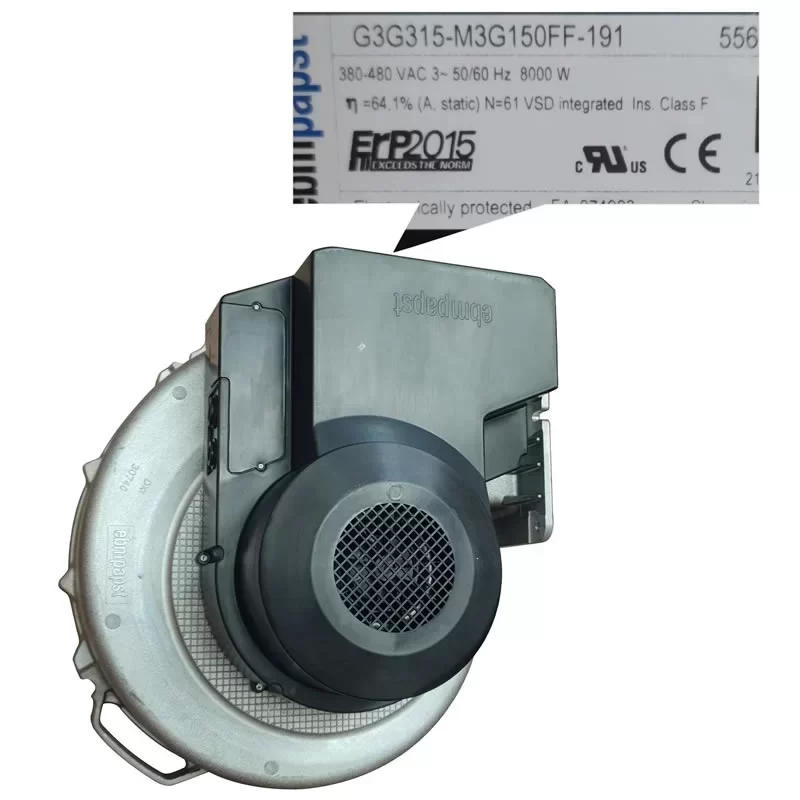

The ebmpapst G3G315-M3G150FF, a 380-480VAC 315mm EC centrifugal fan, operates as a backward-curved single-intake gas blower. Constructed with dimensions of 549 x 529 x 365 mm and weighing 34.5 kg, it utilizes a sheet aluminum impeller housed in die-cast aluminum. Operating on a three-phase (3~) supply across a nominal voltage range of 380 – 480 VAC at 50 / 60 Hz, the unit consumes 8000 W of power. Engineered for high-capacity thermal management, it achieves a speed of 6000 RPM, delivering an air flow of 2707.46 CFM (4600 m³/h / 76.67 m³/min) and a pressure increase of 632.22 mmH₂O (6200 Pa / 24.89 inAq). Holding VDE and CE approvals, the G3G315-M3G150FF ensures rigorous safety and performance standards for demanding environments.
G3G315-M3G150FF Fan Parameters
Manufacturer: ebmpapst
Model Number: G3G315-M3G150FF
Type: EC Centrifugal Fan (Backward-Curved, Single-Intake)
Application Focus: Gas Blower for Condensing Boilers
Impeller Size: 315 mm
Dimensions: 549 x 529 x 365 mm
Weight: 34.5 kg
Impeller Material: Sheet Aluminum
Housing Material: Die-Cast Aluminum
Phase: 3~
Nominal Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz
Speed: 6000 RPM
Power Consumption: 8000 W
Air Flow: 2707.46 CFM (4600 m³/h / 76.67 m³/min)
Pressure Increase: 632.22 mmH₂O (6200 Pa / 24.89 inAq)
Valid for Approval / Standard: VDE
Approval: VDE, CE
Application
The ebmpapst G3G315-M3G150FF is specifically deployed in high-efficiency condensing boilers, commercial heating plants, industrial gas burner systems, and premix combustion equipment requiring high-pressure, precision gas blowing.
