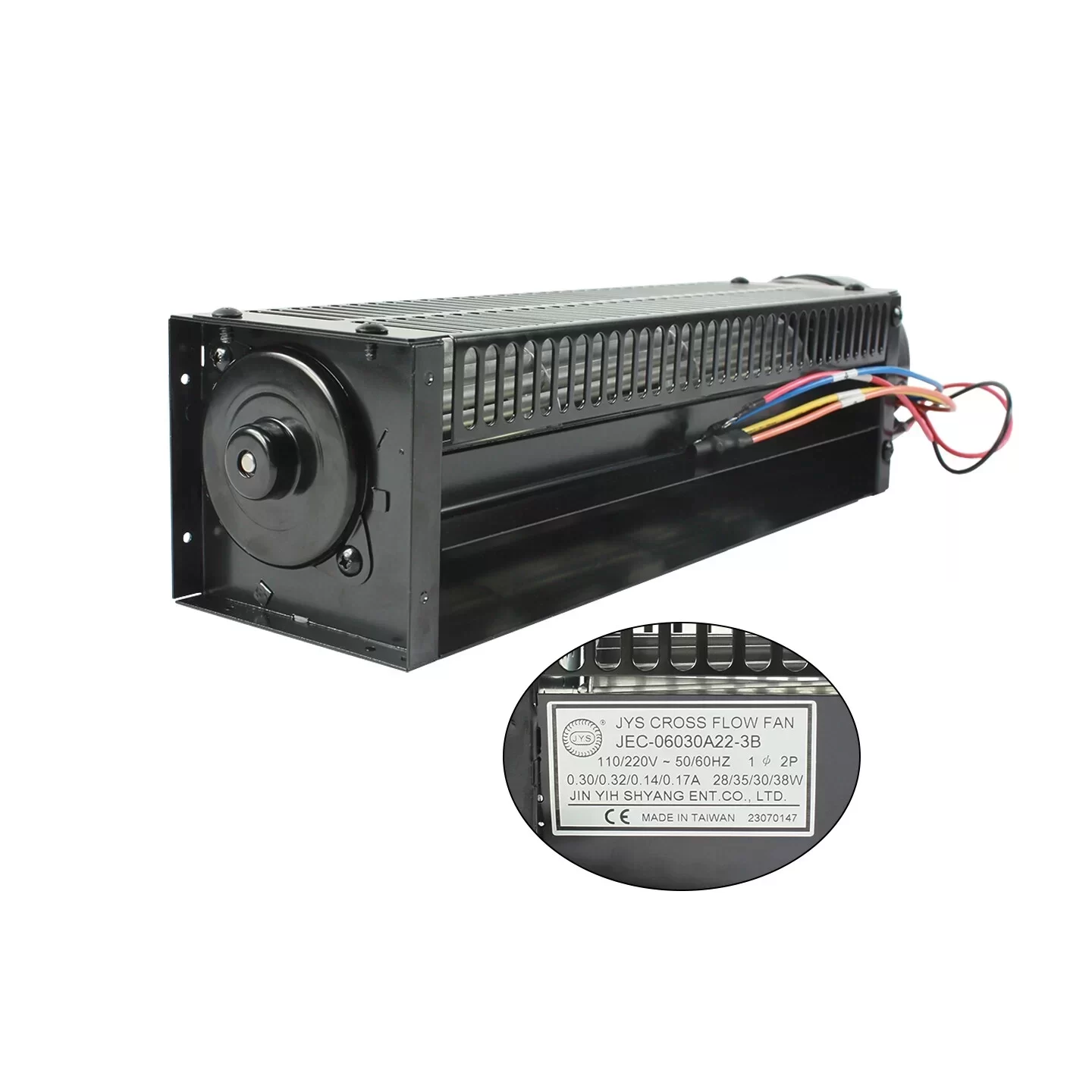

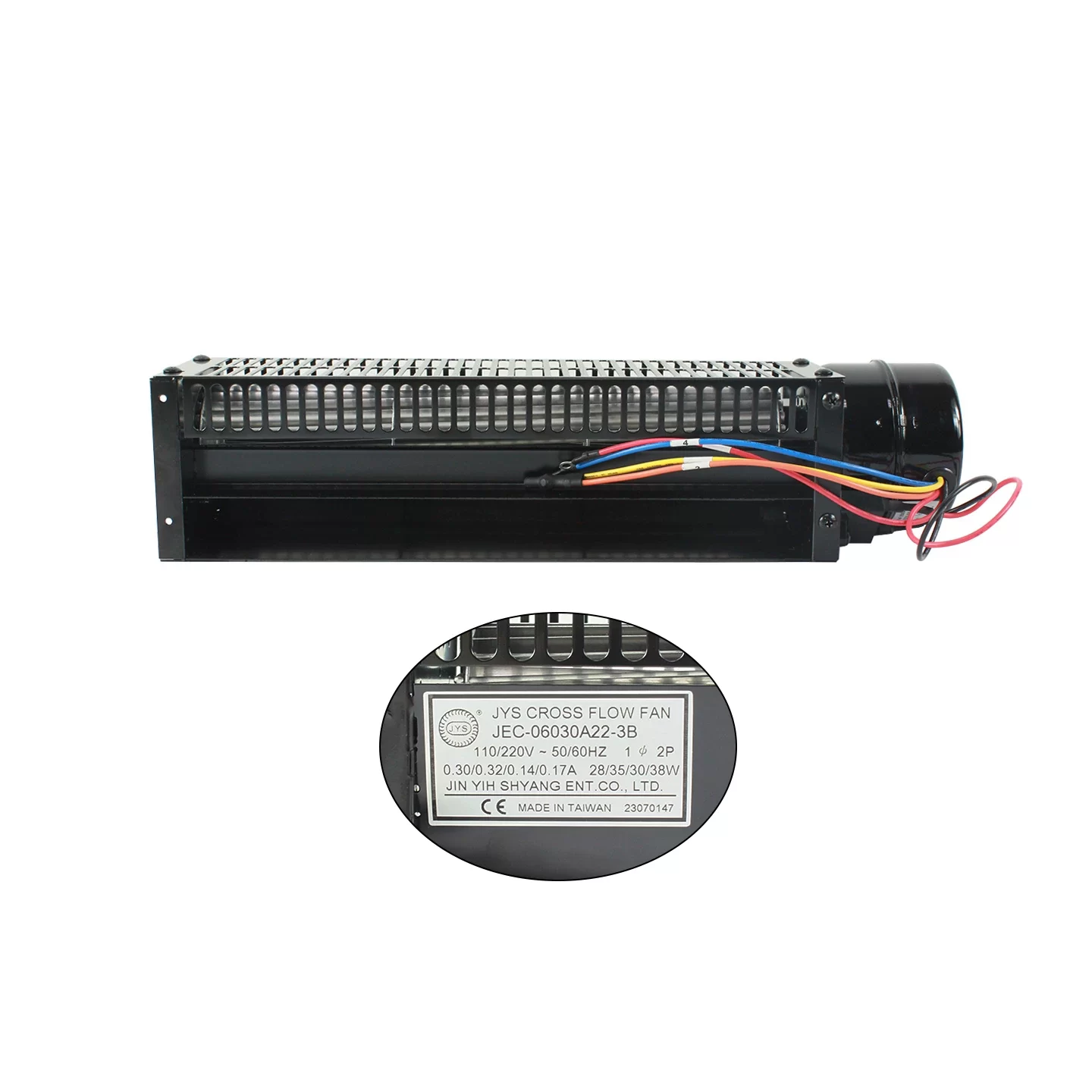

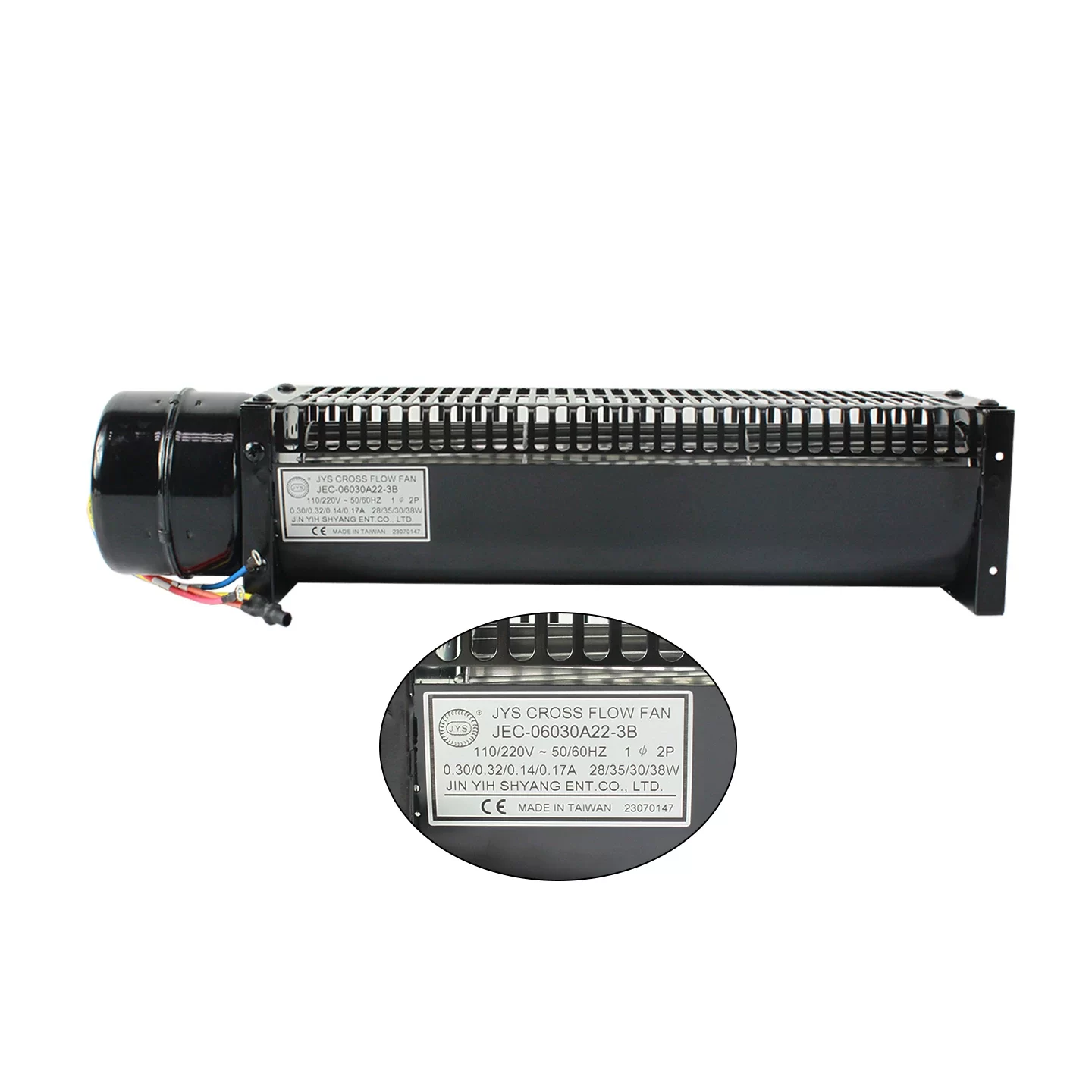

JEC-06030A22-3B JYS 110/220VAC AC Cross Flow Fan

Description

The JYS JEC-06030A22-3B is a high-performance 110 / 220 VAC dual-voltage AC cross-flow fan with overall housing dimensions of 405 x 106 x 96 mm and a 60 mm impeller diameter. Manufactured by Jin Yih Shyang Ent. Co., Ltd. in Taiwan for uniform laminar air distribution, this single-phase tangential fan features precision ball bearings, a robust structural housing, and a balanced impeller. Operating on a dual nominal voltage of 110 / 220 VAC (50/60 Hz), it delivers a multi-frequency electrical performance profile: drawing 0.30 / 0.32 A with a Max. Power Consumption of 28 / 35 W at 110 V (50/60 Hz), and 0.14 / 0.17 A with a Max. Power Consumption of 30 / 38 W at 220 V (50/60 Hz). Delivering a Working Air Flow of 183.64 / 194.23 CFM (312.0 / 330.0 m³/h / 5.20 / 5.50 m³/min) and a Static Pressure Increase of 5.0 / 7.6 mmH₂O (49.0 / 74.5 Pa / 0.20 / 0.30 inAq) at a rated speed of 2,600 / 2,800 RPM, it has a Weight of 1.8 kg, holds CE safety approval, and features a Made in Taiwan designation for continuous commercial thermal management.

JEC-06030A22-3B Fan Parameters
Manufacturer: JYS (Jin Yih Shyang Ent. Co., Ltd.)
Model Number: JEC-06030A22-3B
Type: AC Cross Flow Fan (Tangential Fan)
Phase: 1~ (2P)
Nominal Voltage: 110 / 220 VAC
Frequency: 50 / 60 Hz
Dimensions: 405 x 106 x 96 mm
Impeller Size: Ø 60 mm
Weight: 1.8 kg
Bearing Type: Ball Bearing
Rated Speed: 2,600 / 2,800 RPM (min⁻¹)
Max. Current Draw: 0.30 / 0.32 A (@ 110 V 50/60 Hz) / 0.14 / 0.17 A (@ 220 V 50/60 Hz)
Max. Power Consumption: 28 / 35 W (@ 110 V 50/60 Hz) / 30 / 38 W (@ 220 V 50/60 Hz)
Max. Air Flow: 183.64 / 194.23 CFM (312.0 / 330.0 m³/h / 5.20 / 5.50 m³/min)
Max. Static Pressure: 5.0 / 7.6 mmH₂O (49.0 / 74.5 Pa / 0.20 / 0.30 inAq)
Country of Origin: Made in Taiwan
Safety Approvals: CE, RoHS

Application
The JYS JEC-06030A22-3B is deployed in commercial refrigeration units, wine coolers, air curtains, medical equipment, electronic enclosure cooling, heating appliances, and projection systems requiring wide, uniform curtain airflow.
