Description

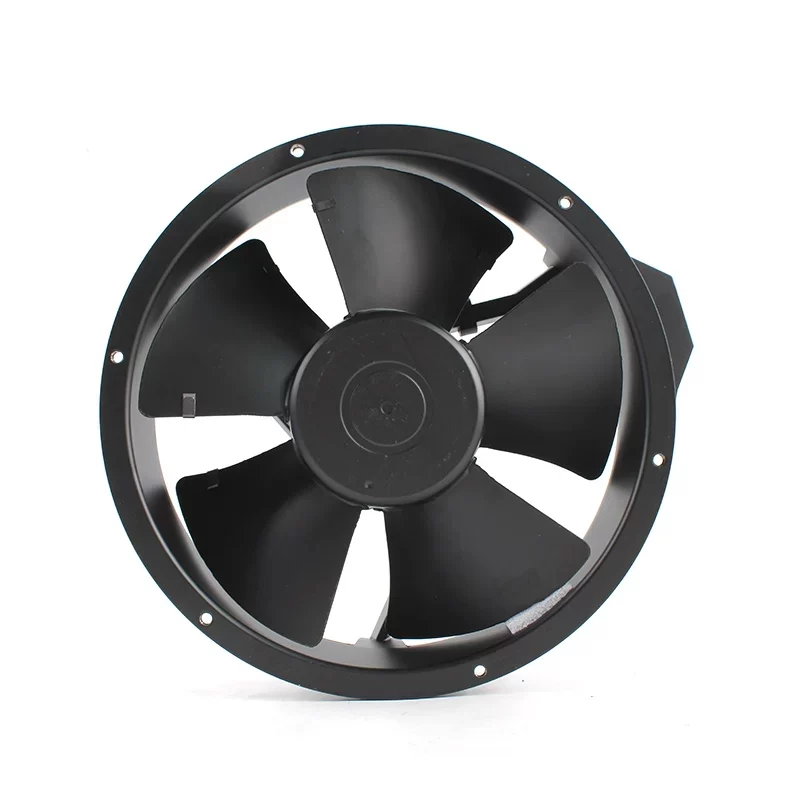

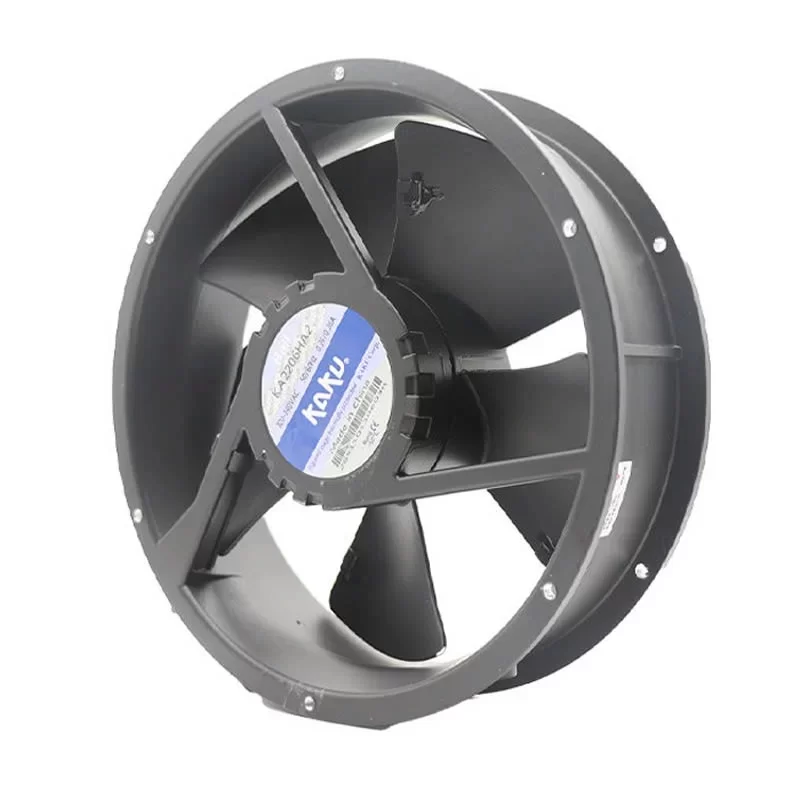

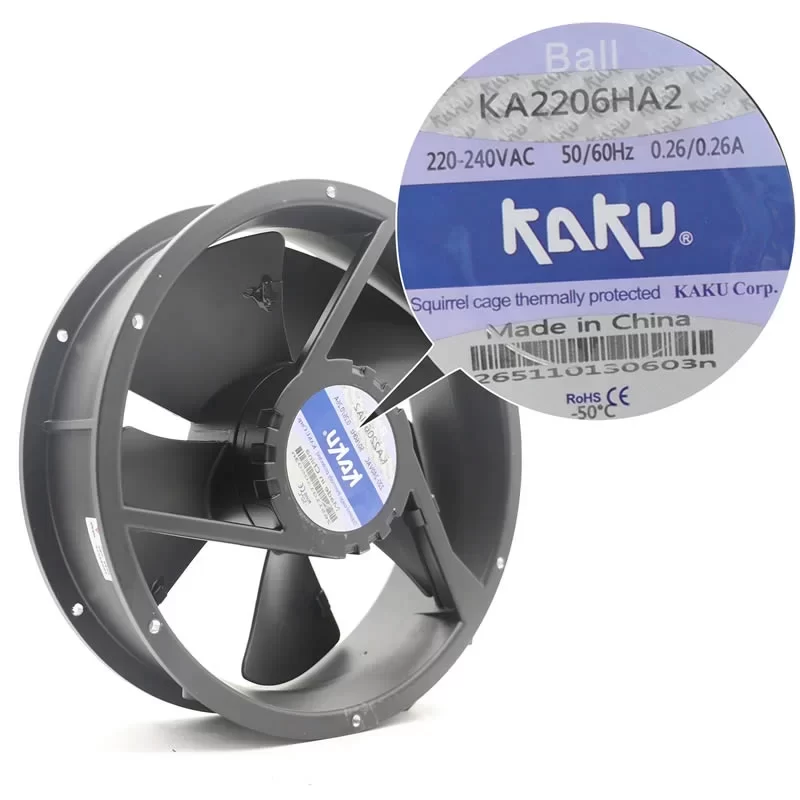

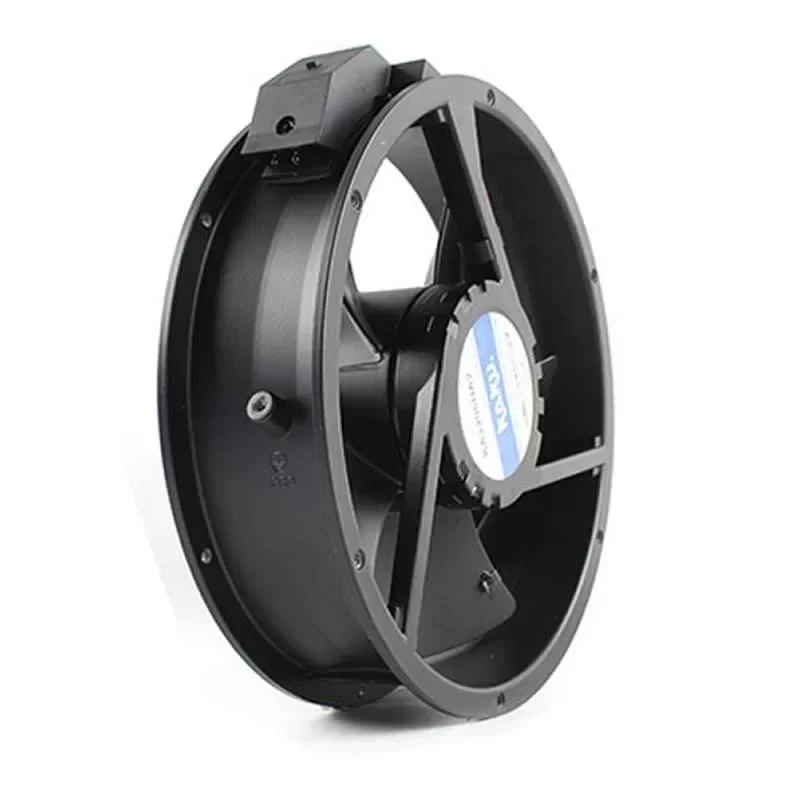

The KAKU KA2206HA2 is a high-performance 220VAC ϕ222 x 60 mm AC axial fan, engineered for reliable thermal management in industrial equipment and electrical cabinets. Featuring dual ball bearings, a magnesium alloy frame, and a durable metal impeller, this heavy-duty cooling fan delivers an airflow of 427.0 / 475.0 CFM (725.5 / 807.0 m³/h / 12.09 / 13.45 m³/min) and a static pressure of 19.81 / 16.00 mmH₂O (194.3 / 156.9 Pa / 0.78 / 0.63 inH₂O) at a rated speed of 2,800 / 3,200 RPM. Operating on a voltage range of 180 – 240 VAC (50/60 Hz), it draws a maximum current of 0.26 A with a power consumption of 56 / 58 W and includes terminal pin connections. Built for continuous high-reliability cooling, it weighs 1.22 kg, operates at 63 / 67 dBA within a temperature range of -50 to +70 °C, offers a life expectancy of 50,000 hours, and holds safety certifications including UL, CE, and RoHS.
KA2206HA2 Fan Parameters
Manufacturer: KAKU
Model Number: KA2206HA2
Type: AC Axial Fan
Nominal Voltage: 220 VAC
Operating Voltage Range: 180 – 240 VAC (50/60 Hz)
Dimensions: ϕ222 x 60 mm
Weight: 1.22 kg
Frame Material: Magnesium Alloy
Impeller Material: Metal
Bearing Type: Ball Bearing
Power Connection Type: Terminals
Rated Speed: 2,800 / 3,200 RPM (min⁻¹)
Max. Current Draw: 0.26 A
Max. Power Consumption: 56 / 58 W
Max. Air Flow: 427.0 / 475.0 CFM (725.5 / 807.0 m³/h / 12.09 / 13.45 m³/min)
Max. Static Pressure: 19.81 / 16.00 mmH₂O (194.3 / 156.9 Pa / 0.78 / 0.63 inH₂O)
Noise Level: 63 / 67 dBA
Operating Temperature: -50 – +70 °C
Storage Temperature: -50 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: UL, CE, RoHS
Application
The KAKU KA2206HA2 is deployed in electrical control cabinets, industrial automation enclosures, power distribution units, frequency converters, CNC machinery, welding equipment, and HVAC ventilation systems.
