Description

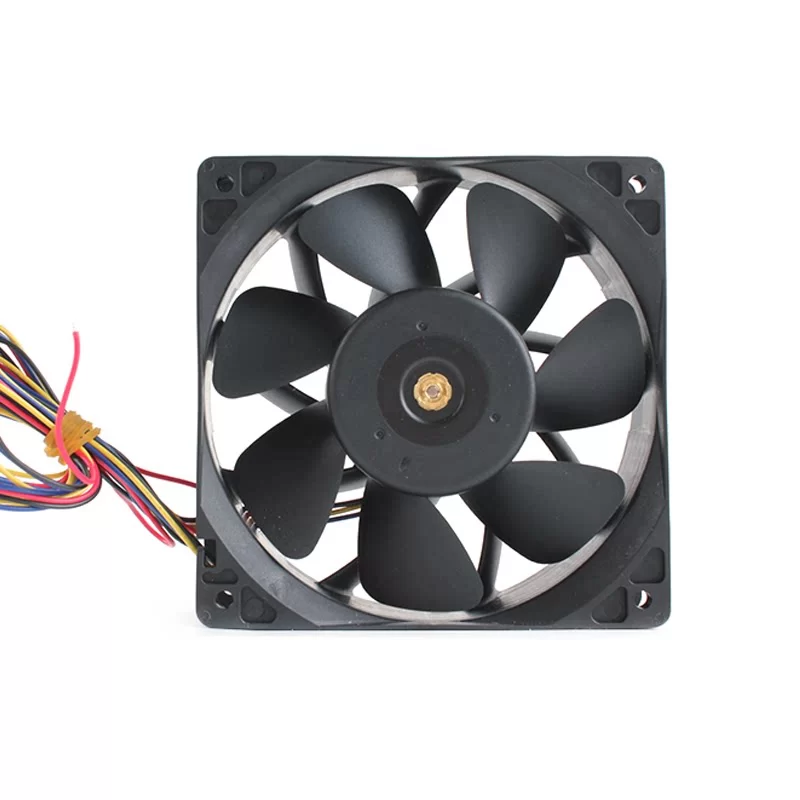

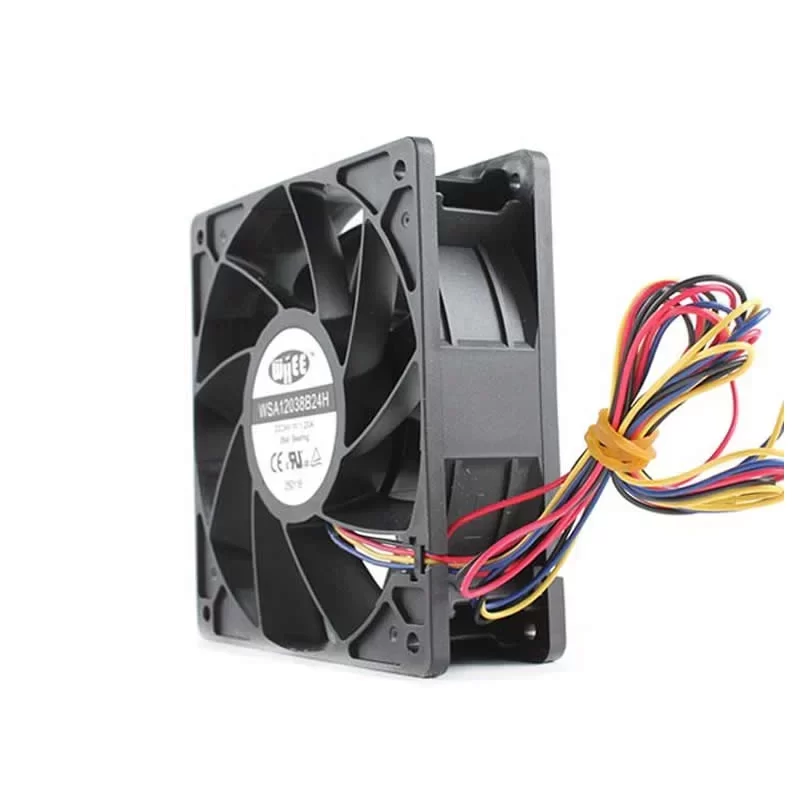

The WHEE WSA12038B24H is a high-performance 24 VDC DC Axial Fan with dimensions of 120 x 120 x 38 mm. Constructed with a PBT thermoplastic frame and impeller (UL 94V-0) and ball bearings, it has a weight of 285 g. Driven by a DC motor, it operates with a current draw of 1.2 A and a power consumption of 28.8 W. Operating at a nominal speed of 6000 RPM, it produces a max. air flow of 222 CFM (377.18 m³/h / 6.29 m³/min) and a max. static pressure of 28.45 mmH₂O (279 Pa / 1.12 inH₂O) with a noise level of 68.0 dBA. Engineered for an operating temperature range of -30 to +82 °C and a life expectancy of 50,000 hours, it features a 4-wire connection.
WSA12038B24H Fan Parameters
Manufacturer: WHEE
Model Number: WSA12038B24H
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Weight: 285 g
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Connection: 4-Wire
Nominal Voltage: 24 VDC
Current Draw: 1.2 A
Power Consumption: 28.8 W
Speed: 6000 RPM
Max. Air Flow: 222 CFM (377.18 m³/h / 6.29 m³/min)
Max. Static Pressure: 28.45 mmH₂O (279 Pa / 1.12 inH₂O)
Noise Level: 68.0 dBA
Operating Temperature: -30 to +82 °C
Life Expectancy: 50000 h
Application
The WHEE WSA12038B24H is deployed in servers, EV charging stations, power supply units, industrial control cabinets, medical and laboratory equipment, computer chassis ventilation, and HVAC systems requiring reliable high-volume forced-air cooling.
