Description

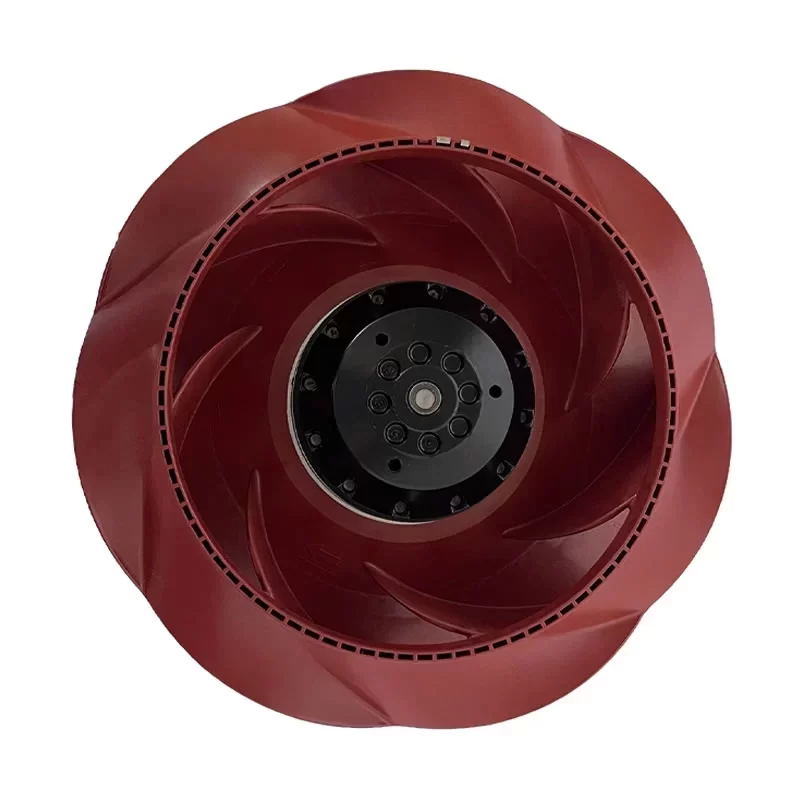

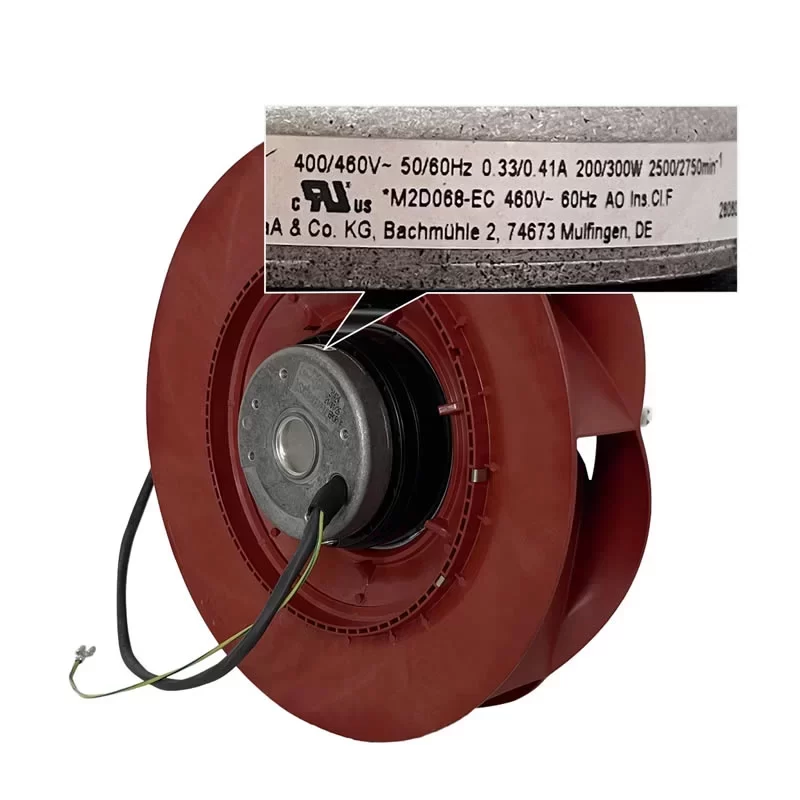

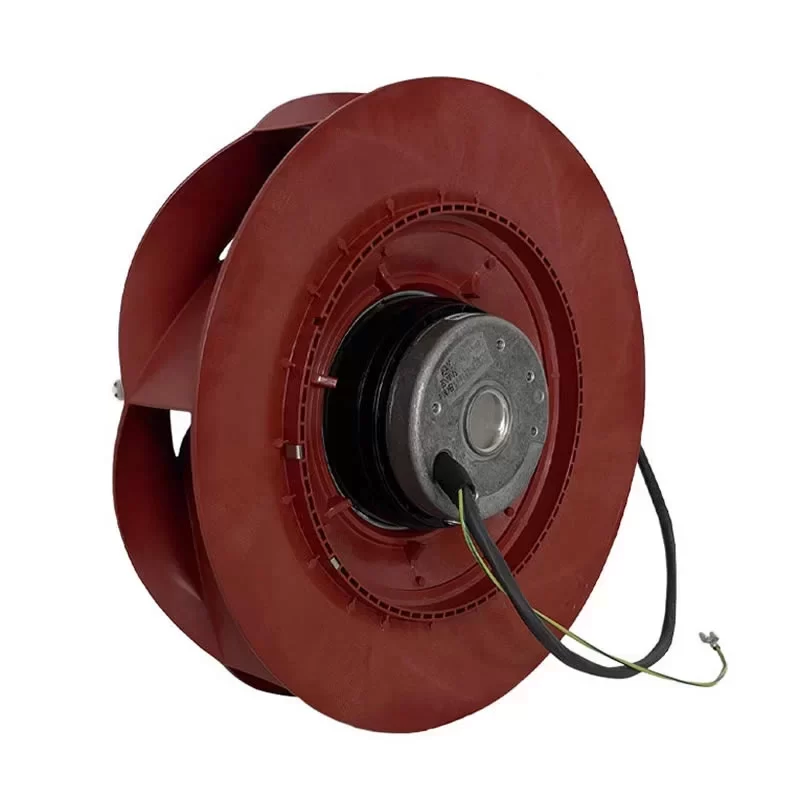

The ebmpapst R2D250-RA10-15 is a high-performance 400VAC three-phase AC centrifugal fan with an impeller size of Ø 250 mm, specifically engineered for intensive thermal management in industrial and commercial HVAC systems. Powered by a robust M2D068-EC motor, this single-intake backward-curved motorized impeller delivers optimized aerodynamic throughput and high reliability in a compact footprint. Operating at a nominal speed of 2,500 RPM under a 400V 50Hz Y connection, it efficiently draws 0.33A of current with a power consumption of 200W. Built with an IP44 protection class, H1+ environmental protection, 7 PA plastic blades, and precision ball bearings, the R2D250-RA10-15 ensures long-lasting continuous-duty operation. It also features built-in thermal overload protection and complies with strict safety standards including UL 1004-1 and CSA.
R2D250-RA10-15 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2D250-RA10-15
Motor Model: M2D068-EC
Type: AC Centrifugal Fan (Backward Curved, Single-Intake)
Impeller Size: Ø 250 mm
Dimensions: 250 x 250 x 102 mm
Weight: 2.82 kg
Blade Material: PA Plastic
Number of Blades: 7
Rotor Surface: Painted black
Bearing Type: Ball Bearing
Phase: 3~ (Three-Phase)
Data Sequence: (400V 50Hz Y / 400V 60Hz Y)
Nominal Voltage: 400 / 400 VAC
Frequency: 50 / 60 Hz
Wiring: Y / Y
Rated Speed: 2,500 / 2,600 RPM (min⁻¹)
Max. Power Consumption: 200 / 270 W
Max. Current Draw: 0.33 / 0.43 A
Starting Current: 0.95 / 0.88 A (at 50Hz / 60Hz)
Min. Back Pressure: 0 Pa (0 in. wg)
Ingress Protection: IP44 (installation- and position-dependent as per EN 60034-5)
Insulation Class: F
Moisture / Environmental Protection Class: H1+
Operating Mode: S1 (Continuous duty)
Direction of Rotation: Clockwise / Counterclockwise (reversible by reversing two phases)
Operating Temperature: -25 – +80 °C (at 400V 50Hz), -25 – +40 °C (at 60Hz)
Storage / Transport Temperature: -40 – +80 °C
Electrical Hookup: Axial cable with flat push-on receptacles and connector housing
Motor Protection: Thermal overload protector (TOP) with basic insulation
Safety Approvals: UL 1004-1, CSA C22.2 No. 100, CE (Commissioning not permitted in the European Economic Area)
Application
The ebmpapst R2D250-RA10-15 AC centrifugal fan is specifically designed for cooling industrial frequency converters, commercial HVAC air handling units, telecommunications equipment, power electronics enclosures, and renewable energy inverters requiring reliable three-phase thermal extraction.
