Description

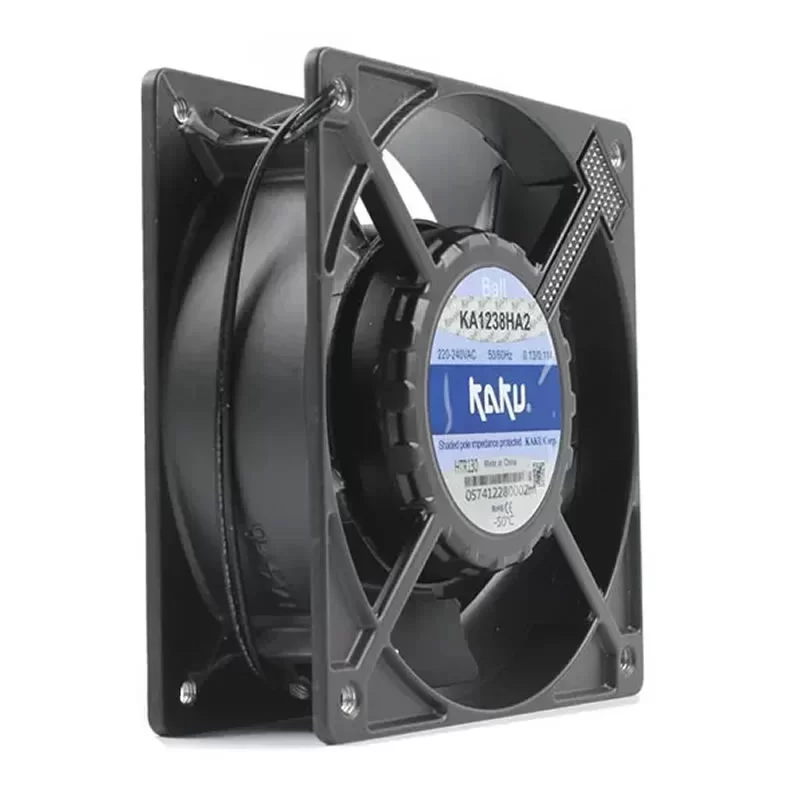

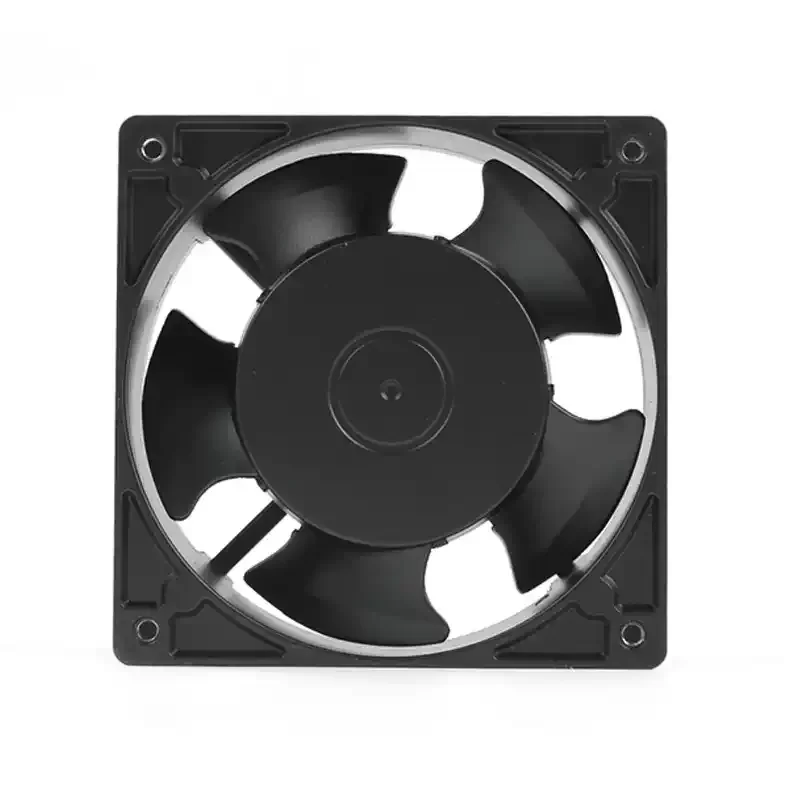

The KAKU KA1238HA2-HTR130 is a high-performance 220VAC high-temperature resistant AC axial fan with dimensions of 120 x 120 x 38 mm, specifically engineered for demanding industrial environments requiring continuous thermal management at extreme temperatures ranging from -50 to 130 °C. Built with a robust magnesium alloy frame and high-precision ball bearings, this fan delivers reliable airflow with dual-frequency performance, operating at a rated speed of 2,700 / 3,100 RPM, power consumption of 18 / 16 W, and a current draw of 0.13 / 0.11 A. It achieves a maximum air flow of 84 / 100 CFM (142.7 / 169.9 m³/h) and a static pressure of 0.28 / 0.34 inAq (69.7 / 84.7 Pa), while maintaining an expected life of 50,000 h and a weight of 460 g. Its specialized high-temperature construction makes it an ideal cooling solution for industrial ovens, heating equipment, and high-temperature machinery enclosures.
KA1238HA2-HTR130 Fan Parameters
Manufacturer: KAKU
Model Number: KA1238HA2-HTR130
Type: AC Axial Fan (High-Temperature Resistant)
Dimensions: 120 x 120 x 38 mm
Weight: 460 g
Frame / Blade Material: Magnesium Alloy
Bearing Type: Ball Bearing
Rated Voltage: 220 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 0.13 / 0.11 A
Max. Power Consumption: 18 / 16 W
Rated Speed: 2,700 / 3,100 RPM (min⁻¹)
Max. Air Flow: 84 / 100 CFM (142.7 / 169.9 m³/h / 2.38 / 2.83 m³/min)
Max. Static Pressure: 0.28 / 0.34 inAq (69.7 / 84.7 Pa / 7.1 / 8.6 mmH₂O)
Sound Pressure Level: 49 / 51 dB(A)
Expected Life: 50,000 h
Operating Temperature: -50 – +130 °C
Termination: Lead Wires
Safety Approvals: CE, RoHS
Application
The KAKU KA1238HA2-HTR130 high-temperature resistant AC axial fan is specifically designed for cooling industrial ovens, commercial heating systems, steam generators, welding equipment, and high-temperature electrical enclosures requiring reliable thermal extraction in harsh environments.
