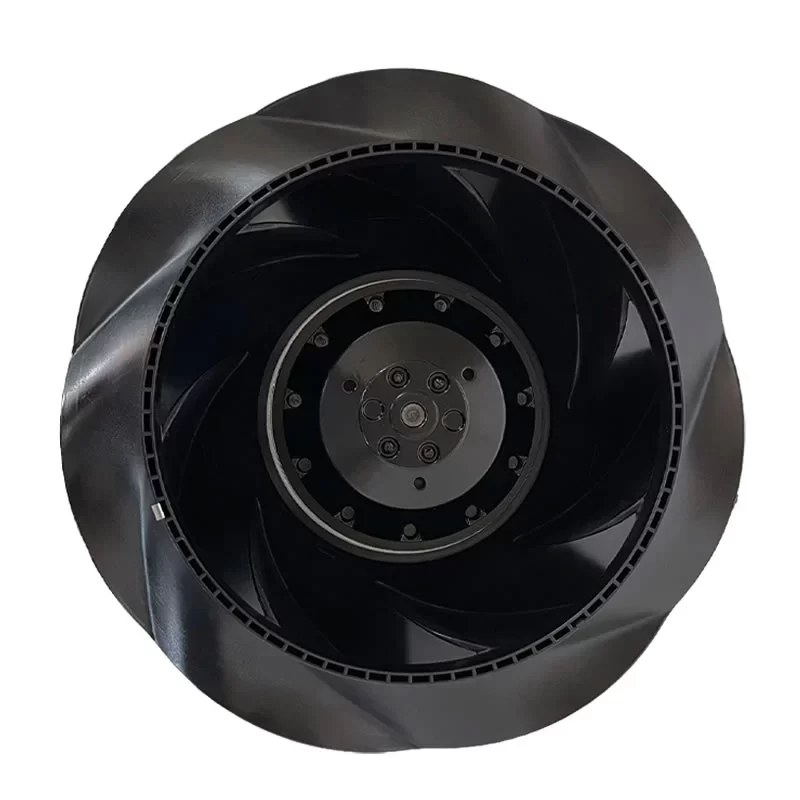

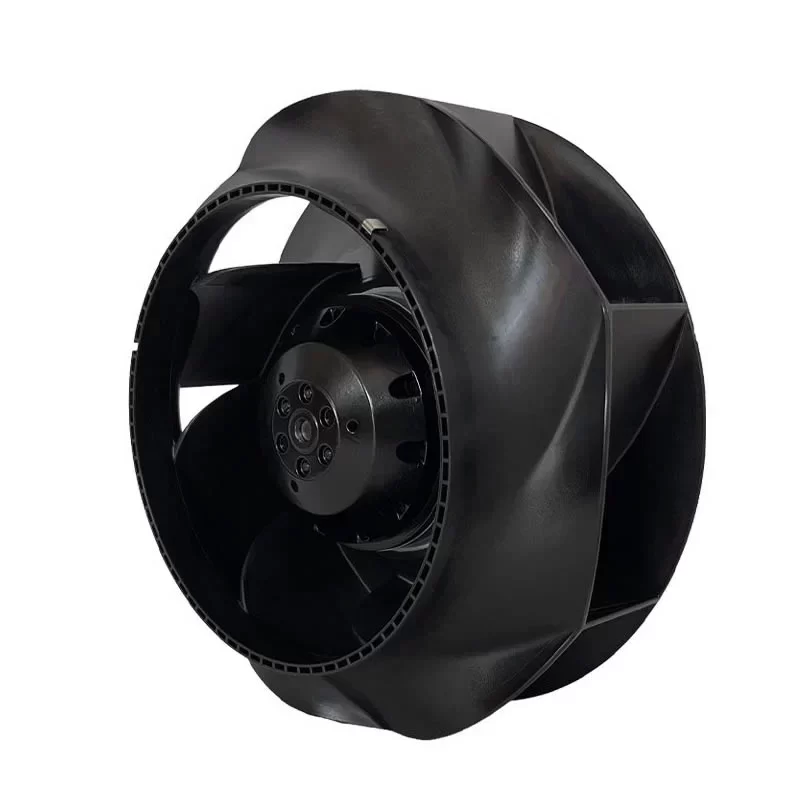

R2E225-RA92-37 ebmpapst 230VAC 225mm AC Centrifugal Fan

Description

The ebmpapst R2E225-RA92-37 is a high-performance 230VAC single-phase AC centrifugal fan with an impeller size of Ø 225 mm and external dimensions of 225 x 225 x 100 mm, specifically engineered for intensive thermal management in commercial HVAC and industrial ventilation systems. Powered by a robust M2E068-DF motor, this single-intake backward-curved RadiCal motorized impeller delivers high-volume airflow and pressure performance. Operating at a rated speed of 2,500 / 2,600 RPM under 230 VAC (50 / 60 Hz), it efficiently draws 0.68 / 0.92 A with a power consumption of 155 / 210 W and a starting current of 1.25 / 1.2 A. Built with a 7-blade PA plastic impeller, painted black rotor surface, IP44 protection rating, Insulation Class F, and precision ball bearings, it operates with a 3.5 µF / 450 VDB capacitor and weighs 2.3 kg. The R2E225-RA92-37 ensures long-term continuous-duty reliability under operating temperatures ranging from -25 to +70 °C.

R2E225-RA92-37 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2E225-RA92-37

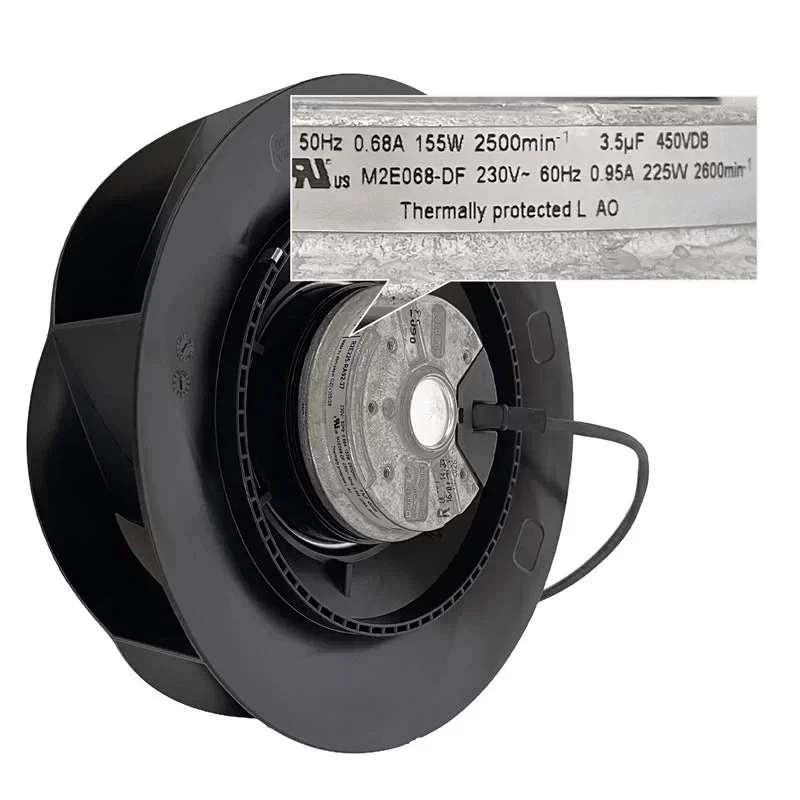

Motor Model: M2E068-DF
Type: AC Centrifugal Fan (RadiCal, Backward Curved, Single-Intake)
Impeller Size: Ø 225 mm
Dimensions: 225 x 225 x 100 mm
Weight: 2.3 kg
Impeller Material: PA Plastic
Number of Blades: 7
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 / 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 0.68 / 0.92 A
Max. Power Consumption: 155 / 210 W
Starting Current: 1.25 / 1.2 A
Rated Speed: 2,500 / 2,600 RPM (min⁻¹)
Working Air Flow: 414.95 CFM (705.0 m³/h / 11.75 m³/min)
Static Pressure Increase: 32.63 mmH₂O (320.0 Pa / 1.28 inAq)
Overall Efficiency (ηes): 42.5% (A, static)
Efficiency Grade: N62
Required Capacitor: 3.5 µF / 450 VDB
Ingress Protection: IP44 (installation- and position-dependent as per EN 60034-5)
Insulation Class: Class F
Environmental Protection Class: H1
Operating Mode: S1 (Continuous duty)
Operating Temperature: -25 – +70 °C (at 50Hz), -25 – +65 °C (at 60Hz)
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990) Motor Protection: Thermal overload protector (TOP) internally connected Protection Class: Class I (with customer connection of protective earth) Safety Approvals: CE, UL 1004-3, CSA C22.2 No. 77, EN 60335-1, RoHS Application The ebmpapst R2E225-RA92-37 AC centrifugal fan is specifically designed for cooling heat recovery ventilation units, commercial air conditioning systems, cleanroom filter units, cabinet cooling, and power electronics enclosures requiring reliable high-pressure thermal extraction.
