Description

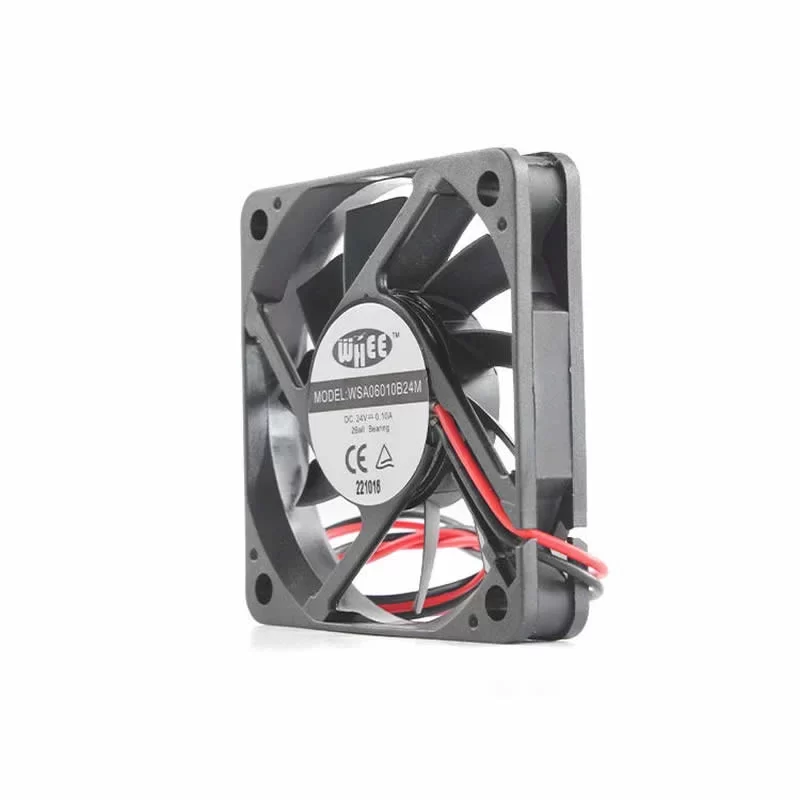

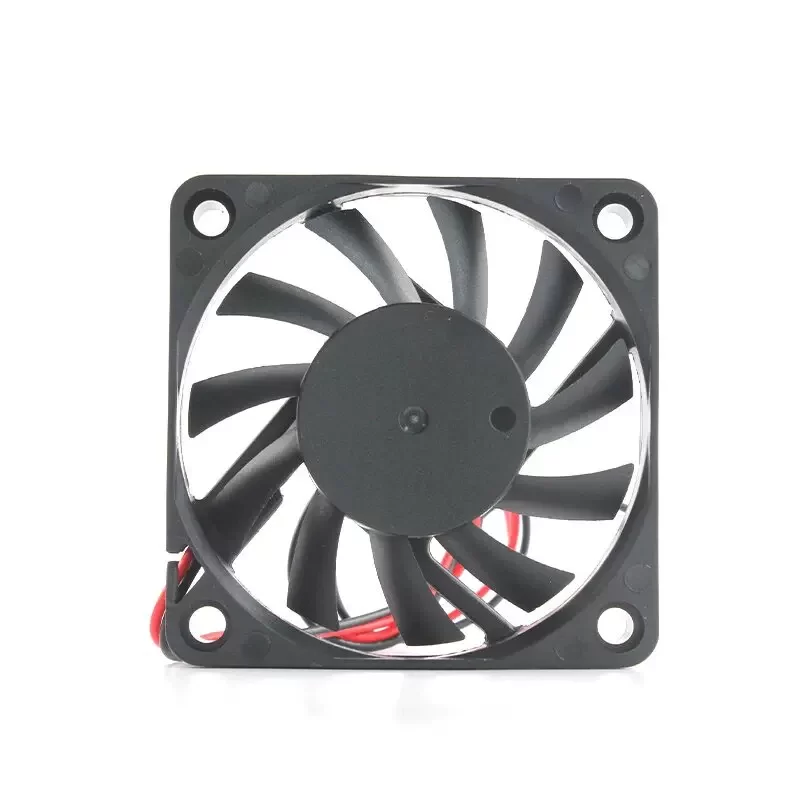

The WHEE WSA06010B24M is a high-performance 24 VDC DC Axial Fan with dimensions of 60 x 60 x 10 mm. Constructed with a glass fiber reinforced plastic frame and impeller and ball bearings, it has a weight of 35 g. Driven by a DC motor, it operates with a current draw of 0.10 A and a power consumption of 2.4 W. Operating at a nominal speed of 4000 RPM, it produces a max. air flow of 16.5 CFM (28.03 m³/h / 0.47 m³/min) and a max. static pressure of 3.2 mmH₂O (31.38 Pa / 0.126 inAq) with a noise level of 28.0 dBA. Engineered for an operating temperature range of -10 to +70 °C and a life expectancy of 50,000 hours, it features a lead wire connection.
WSA06010B24M Fan Parameters
Manufacturer: WHEE
Model Number: WSA06010B24M
Type: DC Axial Fan
Dimensions: 60 x 60 x 10 mm
Weight: 35 g
Frame Material: Glass Fiber Reinforced Plastic
Impeller Material: Glass Fiber Reinforced Plastic
Bearing Type: Ball Bearing
Connection: Lead Wire
Nominal Voltage: 24 VDC
Current Draw: 0.10 A
Power Consumption: 2.4 W
Speed: 4000 RPM
Max. Air Flow: 16.5 CFM (28.03 m³/h / 0.47 m³/min)
Max. Static Pressure: 3.2 mmH₂O (31.38 Pa / 0.126 inAq)
Noise Level: 28.0 dBA
Operating Temperature: -10 to +70 °C
Life Expectancy: 50000 h
Application
The WHEE WSA06010B24M is deployed in embedded systems, compact enclosures, power supply units, industrial control electronics, and ventilation equipment requiring reliable low-profile forced-air cooling.
