Description

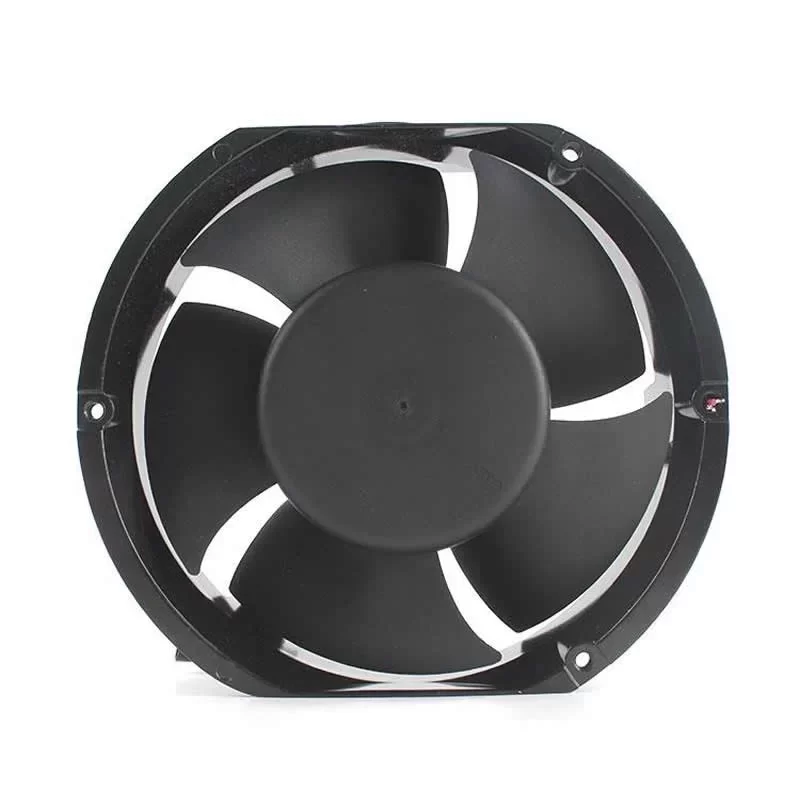

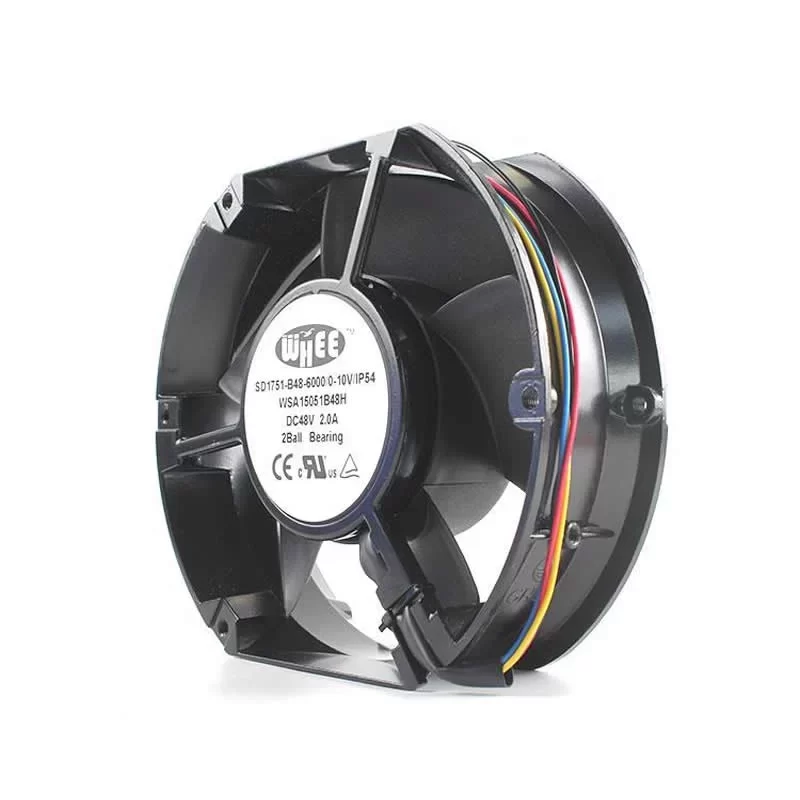

The WHEE SD1751-B48-6000 is a high-performance 48 VDC DC Axial Fan with dimensions of 172 x 172 x 51 mm. Constructed with a PBT thermoplastic frame and impeller (UL 94V-0) and 2 ball bearings, it features an IP54 degree of protection and a 0-10V control function. Driven by a DC motor operating with a current draw of 2.0 A and a power consumption of 96 W, it includes a 4-wire connection and conforms to CE, cURus, and TÜV standards.
SD1751-B48-6000 Fan Parameters
Manufacturer: WHEE
Model Number: SD1751-B48-6000
Type: DC Axial Fan
Dimensions: 172 x 172 x 51 mm
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: 2 Ball Bearing
Connection: 4-Wire
Degree of Protection: IP54
Control Function: 0-10V
Nominal Voltage: 48 VDC
Current Draw: 2.0 A
Power Consumption: 96 W
Product Conforming to Standard: CE, cURus, TÜV
Application
The WHEE SD1751-B48-6000 is deployed in servers, telecom equipment, inverters, industrial machinery, and large control cabinets requiring high-capacity forced-air cooling.
