Description

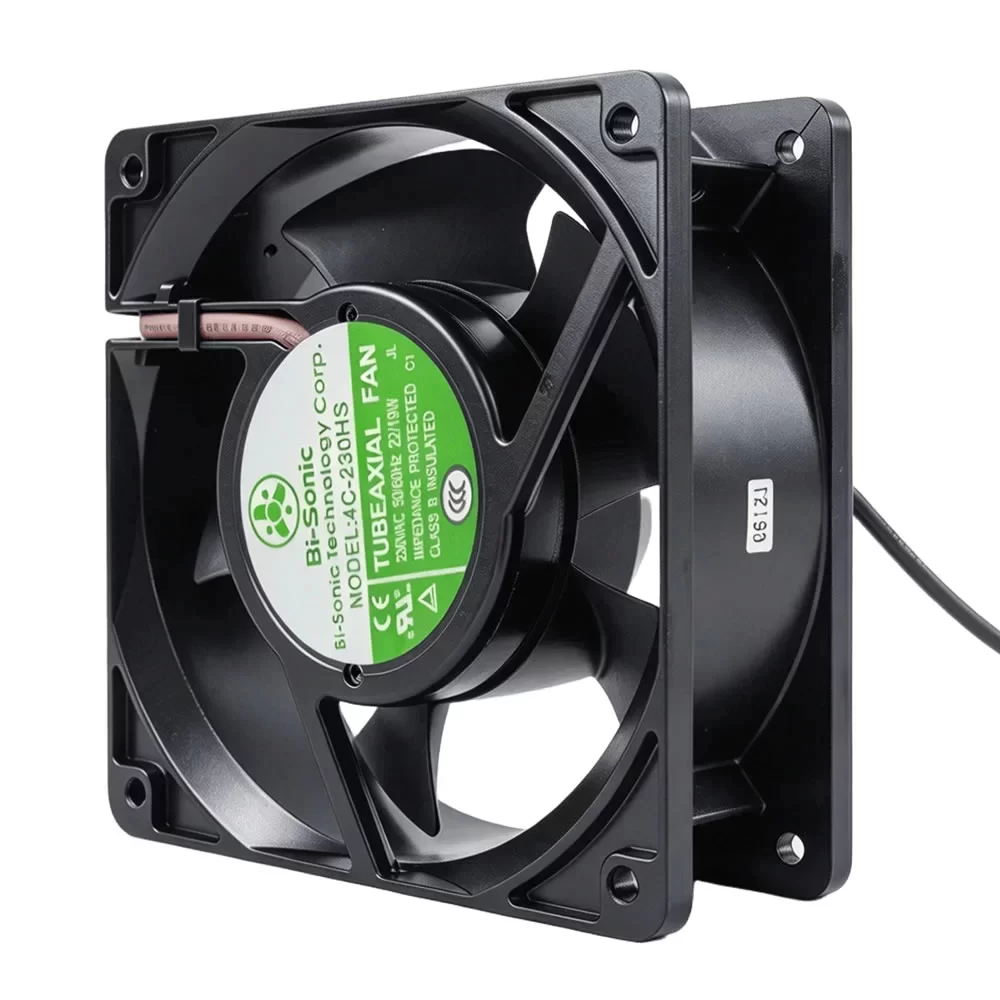

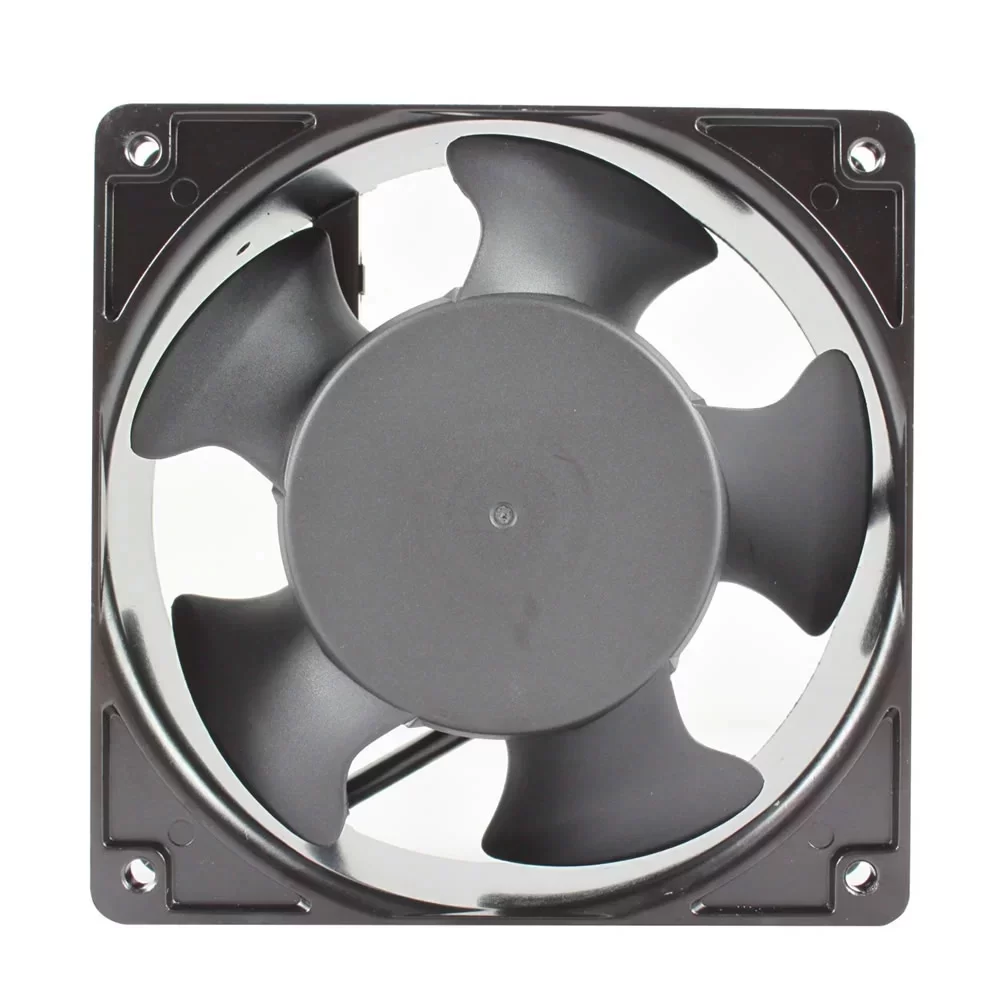

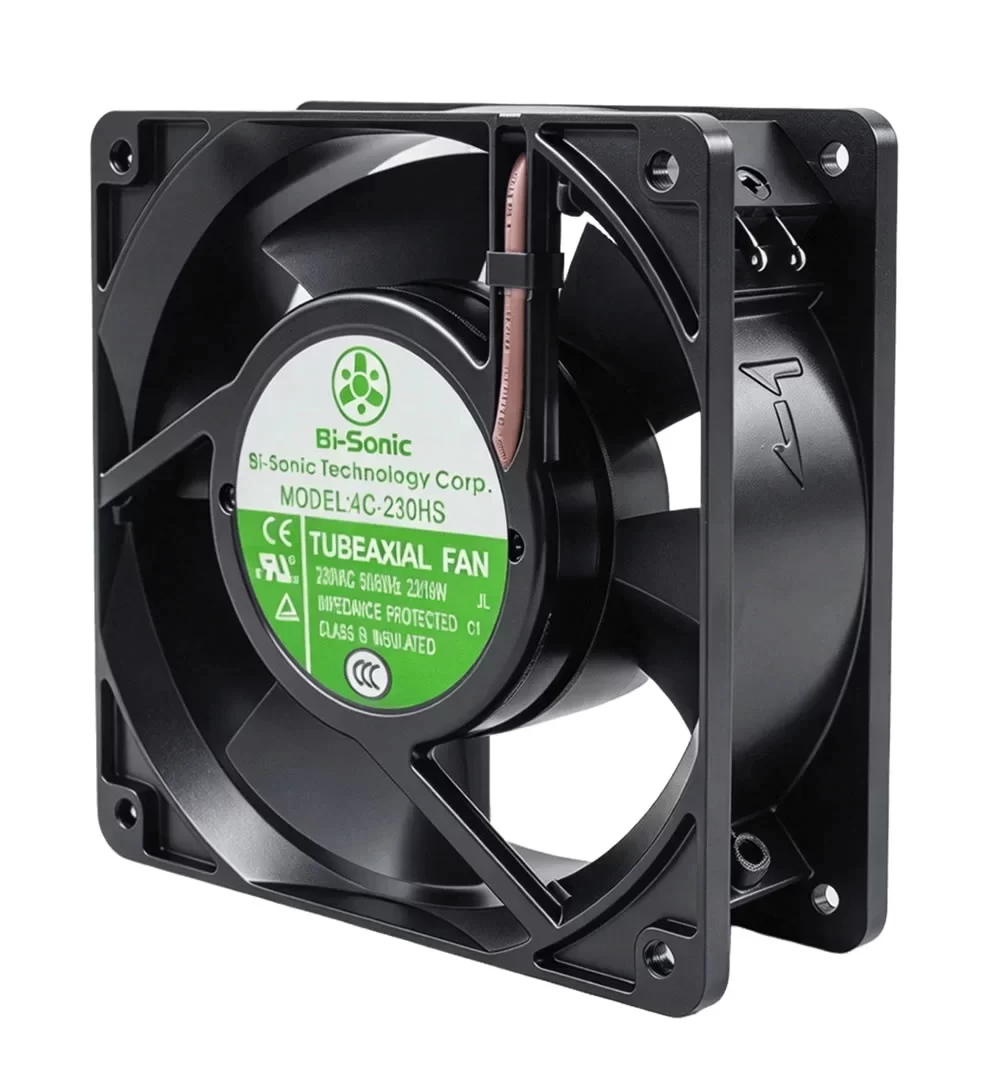

The Bi-Sonic 4C-230HS is a high-performance 230 VAC AC Axial Fan with dimensions of 120 x 120 x 38 mm (4.72 x 4.72 x 1.50 in), engineered to deliver forced-air cooling and active thermal management for industrial control cabinets and commercial equipment. Built with a rugged die-cast aluminum housing, a glass fiber reinforced plastic impeller (UL94V-0), Class B insulation, and precision sleeve bearings, it has a net weight of 500 g. Driven by an impedance-protected AC motor operating at 230 VAC at 50/60 Hz, it draws a rated current of 0.135 / 0.11 A with a power consumption of 22 / 19 W and features 2 terminal connections. Operating at nominal speeds of 2560 / 3000 RPM, it provides a Max. Air Flow of 85.00 / 98.00 CFM (144.41 / 166.50 m³/h / 2.40 / 2.80 m³/min) and a Max. Static Pressure of 7.00 / 7.40 mmH₂O (68.65 / 72.57 Pa / 0.28 / 0.29 inH₂O) with a noise level of 46.0 / 50.0 dBA. Designed for reliable continuous operation across temperatures from -10 to +70 °C, it complies with CE, cURus, TÜV, CCC, and RoHS agency approvals.
4C-230HS Fan Parameters
Manufacturer: Bi-Sonic (Bi-Sonic Technology Corp.)
Model Number: 4C-230HS
Type: AC Axial Fan
Country of Origin: Taiwan
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Rated Current: 0.135 / 0.11 A
Power Consumption: 22 / 19 W
Electrical Connection: 2 Terminals
Motor Protection: Impedance Protected
Speed: 2560 / 3000 RPM
Max. Air Flow: 85.00 / 98.00 CFM (144.41 / 166.50 m³/h / 2.40 / 2.80 m³/min)
Max. Static Pressure: 7.00 / 7.40 mmH₂O (68.65 / 72.57 Pa / 0.28 / 0.29 inH₂O)
Noise Level: 46.0 / 50.0 dBA
Dimensions: 120 x 120 x 38 mm (4.72 x 4.72 x 1.50 in)
Weight: 500 g
Housing Material: Die-Cast Aluminum
Impeller Material: Glass Fiber Reinforced Plastic (PBT UL94V-0)
Bearing Type: Sleeve Bearing
Insulation Class: Class B
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cURus, TÜV, CCC, RoHS
Application
The Bi-Sonic 4C-230HS is deployed in industrial automation enclosures, power distribution cabinets, CNC machine tools, commercial ventilation systems, welding machines, and electronic equipment racks requiring reliable active thermal management.
